Fast. Versatile. Impressive. Whether capturing high-speed sporting events or simple, everyday moments, the EOS 90D camera is engineered to deliver impressive results. Equipped with an enhanced 32.5 Megapixel CMOS (APS-C) sensor, powerful DIGIC 8 image processor and an ISO range of 100-25000 (expandable to 51200), you’ll achieve sharp, detailed images, even in low-light settings. Perfect for fast-moving subjects, the EOS 90D camera features a 45-point cross-type AF system* and EOS iTR AF (face detection) — plus high-speed continuous shooting of up to 10 fps — raising the game for wildlife and motor sports photography enthusiasts. And with stunning uncropped 4K 30p video capability, the EOS 90D documents your travels, events and other milestones in full, wide-angle view. No matter where your photography ventures take you, the EOS 90D proves to be the versatile, all-around SLR camera you didn’t know you were missing.

High Image Quality with 32.5 Megapixel CMOS (APS-C) Sensor

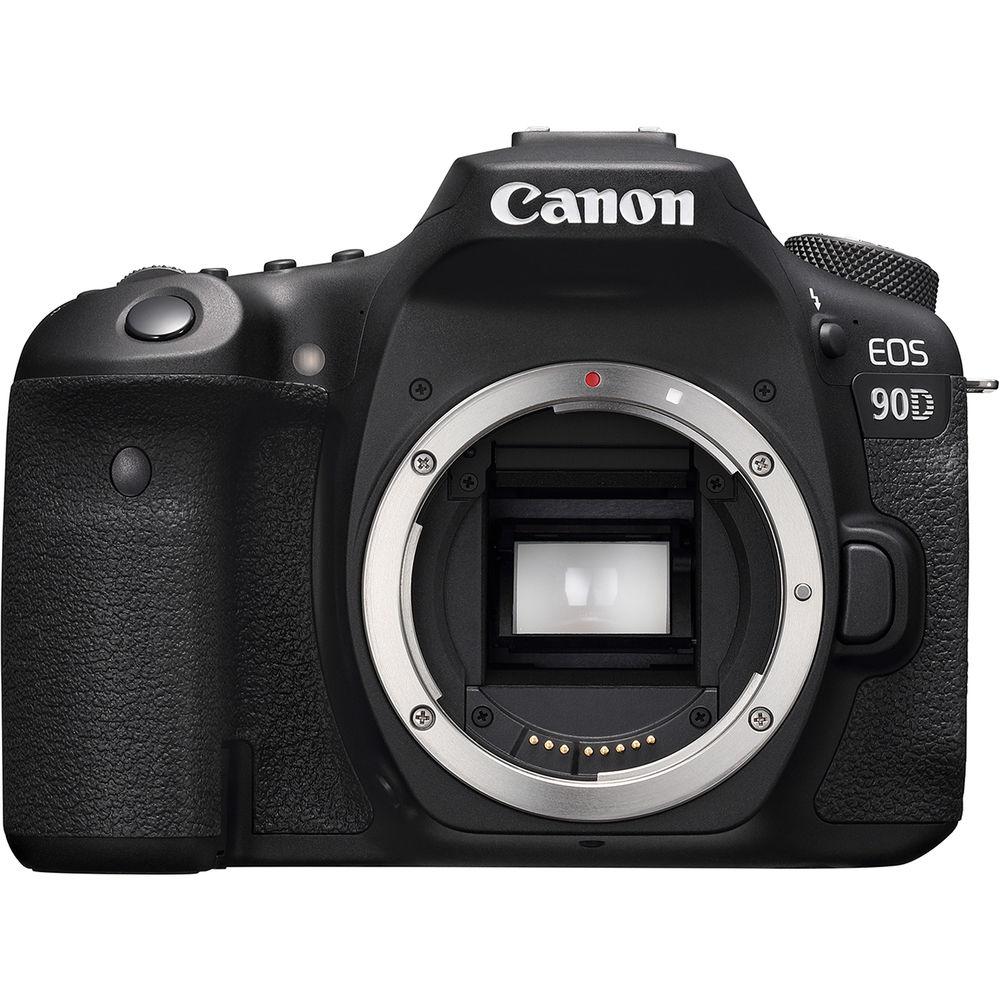

The Canon EOS 90D camera features a powerful 32.5 Megapixel CMOS (APS-C) sensor that can capture high-resolution images. Utilizing a sophisticated light-capturing design, it provides high sensitivity for high ISO capture with reduced noise, delivering clear, detailed results even in low light. It also enables fast continuous shooting and fast autofocus for high-speed performance that helps you capture once-in-a-life time moment.

DIGIC 8 Image Processor
The DIGIC 8 Image Processor helps produce high image quality and fast operation, even in in low light. When using high ISO settings, the image processor helps keep results sharp and detailed in virtually any lighting situation. Powerful all around, the DIGIC 8 Image Processor helps ensure your photos and videos look sharp and lifelike with minimal noise or grain.

High-Speed Continuous Shooting of up to 10 fps with no Time Lag during OVF Shooting
With a new, rugged shutter designed for 200,000 cycles, the EOS 90D camera can shoot up to 10 frames per second during viewfinder shooting, and approx. 11fps during live view shooting to capture all the action. With super quick AF and exposure systems complementing the shutter's 55m sec shutter release time lag, the EOS 90D camera is tailored to meet and even exceed the speed of the action with no time lag while shooting through the optical viewfinder.

4K (UHD) 30fps / FHD 120fps Video
Thanks to the DIGIC 8 image processor, and APS-C size CMOS image sensor, enjoy recording uncropped 4K videos at up to 30 frames per second. Recording at almost four times the resolution of Full HD, you can see your subject in stunning clarity.

FHD 120fps Video
Full HD videos at up to 120 frames per second can also be recorded using the EOS 90D camera - delivering refined and detailed image quality. Designed to capture fun, beautiful videos, the EOS 90D camera helps ensure that you can see the unique expressions of your friends' or family's faces in close-up movies.

45-point all cross-type AF system* Supports up to 27 Points with an f/8 Metering
The EOS 90D camera has a wide-area, 45-point, all cross-type AF system* that helps you get what you want in focus, quickly. This comes in especially handy when trying to photograph fast-moving subjects, like athletes racing at a motocross event, or an athlete scoring a goal. The EOS 90D is compatible with most EF and EF-S lenses that has a maximum aperture of f/8 or higher, and some lenses with extenders attached may operate at a maximum of 27 points. With minimal glare and minimal lag time while looking through the optical viewfinder, the EOS 90D camera will help you get the shot you want without having to lose the fast-moving subject - even in unpredictable settings.

Equipped with an Approx. 220,000 Pixel New AE Sensor and EOS iTR AF (Face Detection)
The EOS 90D camera is equipped with an advanced 220,000-pixel AE sensor and DIGIC 8 image processor, that greatly contribute to the camera's impressive AF performance for both stills and video. The EOS 90D camera also incorporates Canon’s EOS Intelligent Tracking and Recognition system (EOS iTR AF) that detects and tracks your face - even while looking through the optical viewfinder - automatically switching the AF point to optimize face tracking. Using tracking algorithms tailored to recognize faces and colors, this system not only helps to quickly and automatically select the ideal capture settings, but also serves as a brilliant foundation to the EOS 90D AF system.

Fast and Accurate Dual Pixel CMOS AF with Eye Detection AF
The EOS 90D camera lets you shoot with Dual Pixel CMOS AF for fast, accurate autofocus that helps you get the photo you want right as the moment happens. This means fast action can be captured and focus can be maintained with speed, accuracy and ease.

AF Area Coverage of Approx. 88% x 100%
The EOS 90D camera features an expansive focus area of approx. 88% horizontal and 100% vertical^ when working with select EF and EF-S lenses. With older EF lenses, or with Extender types I and II, the EOS 90D camera focuses approx. 80% horizontally and 80% vertically. This means fast and impressive focusing even if your subject is way off center.

AF Points and AF Area
Featuring a sophisticated AF system with a maximum of 5,481 manually selectable AF points**, the EOS 90D can be configured to focus on a specific area during live view shooting, using an extended range of selectable modes that include Face + Tracking AF, single-point Spot AF (ideal for subjects such as animals), zone AF, and single-spot AF.

Multi-Controller Customization
Designed to allow users to operate customizable camera functions while looking through the optical viewfinder, the EOS 90D camera features two multi-controller buttons located on the back of the camera that makes it easy for the user to locate and control.

Battery Grip BG-E22
The EOS 90D camera's dedicated Battery Grip BG-E14 holds 2 Battery Packs LP-E6N, while enabling virtually seamless vertical operation and additional functions with all buttons similarly configured in a comfortable and dedicated grip. Designed to maintain an optimal balance between the weight of the camera body and lens, the Battery Grip BG-E14 also adds a flash sync terminal for use in the studio. It also has a useful battery charging function (with optional USB power delivery adapter attached) that's particularly helpful for power-hungry operations like video recording or shooting over an extended period of time with the OVF.

Electronic shutter with a Minimum of up to 1/16000th
The EOS 90D camera features a powerful electronic shutter system with speeds from 1/16000 second during live view shooting and a mechanical/electronic 1st-curtain shutter with a maximum of 1/8000 second. Not only is this effective at preventing camera shake, but the EOS 90D camera can help capture fast-speed moments such as motocross events, in sharp detail.

Vari-angle Touch Screen LCD
The EOS 90D camera features a 3.0-inch Vari-angle Touch Screen LCD that can be ideal for composing and reviewing your photos. Tap the screen during Live View while taking photos or videos and thanks to Dual Pixel CMOS AF, the EOS 90D camera will quickly lock focus to that specific location in the image. Touch gestures can be used for zooming in or swiping through images after you've taken them. In addition, the Vari-angle Touch Screen LCD lets users capture high-quality selfie shots with ease.

Built-in Wi-Fi Capability
The EOS 90D camera is designed to make connecting to a Wi-Fi network fast and easy. It can exchange data with other Wi-Fi connected compatible Canon cameras, and transfer files directly to a compatible smart device using the Camera Connect app. The Wi-Fi capability lets you share and upload directly to various web services like CANON iMAGE GATEWAY, Facebook and YouTube as well as print directly to compatible wireless Canon printers.

Built-in Bluetooth Capability
Bluetooth pairing helps you connect the camera to compatible smart devices using the free Canon Camera Connect app. To customize the Bluetooth® function, simply click on the network icon located on the LCD screen. In addition, Bluetooth lets you connect to the optional Wireless Remote Control BR-E1 for remote shooting as well as pick up GPS shooting location data from the user’s compatible smartphone while using the GPS receiver GP-E2.

Type of Camera

Type

Digital, AF/AE single-lens reflex camera with built-in flash

Recording Media

SD, SDHC and SDXC Memory Cards
SD speed class compatibility.
UHS speed class compatibility.
High-speed writing is supported when a UHS-I or UHS-II-compatible SD card is used.
Multimedia cards (MMC) cannot be used (card error will be displayed).

Image Format

Approx. 22.3mm x 14.8 mm (APS-C)

Compatible Lenses

Canon EF Lenses (including EF-S lenses, excluding EF-M lenses)

Lens Mount

Canon EF Mount

Image Sensor

Type

CMOS Sensor

Effective Pixels

Approx. 32.5 megapixels

Total Pixels

Approx. 34.4 megapixels

Pixel Unit

Approx. 3.2 μm square

Aspect Ratio

3:2 (Horizontal: Vertical)

Color Filter System

RGB primary color filters

Low Pass Filter

Fixed position in front of the image sensor

Dust Removal Feature

(1) Self Cleaning Sensor Unit

Removes dust adhering to the low-pass filter.
Self-cleaning can be done automatically when the power is turned on or off.

Manual cleaning also possible.

(2) Dust Delete Data acquisition and appending

The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images.
The dust coordinate data appended to the image is used by the EOS software to automatically erase the dust spots.

(3) Manual cleaning

Recording System

Recording Format

Design Rule for Camera File System 2.0 and EXIF 2.31*
* Supports time difference information.

Image Format

Still Image: JPEG, RAW (14 bit Canon Original), C-RAW

Video: MP4 (Movie: MPEG4 AVC/H.264*; Audio: AAC Audio: Linear PCM)
* Variable (averaged) bit rate

File Size

3:2 Aspect Ratio
Large: Approx. 32.3 Megapixels (6960 x 4640)
Medium: Approx.15.4 Megapixels (4800 x 3200)
Small 1: Approx. 8.1 Megapixels (3472 x 2320)
Small 2: Approx. 3.8 Megapixels (2400 x 1600)
RAW / C-RAW: Approx. 32.3 Megapixels (6960 x 4640)

4:3 Aspect Ratio
Large: Approx. 28.6 Megapixels (6160 x4640)
Medium: Approx. 13.6 Megapixels (4256 x 3200
Small 1: Approx. 7.1 Megapixels (3072 x 2320)
Small 2: Approx. 3.4 Megapixels (2112 x 1600)
RAW / C-RAW: Approx. 32.3 Megapixels (6960 x 4640)

16:9 Aspect Ratio
Large: Approx. 27.2 Megapixels (6960 x 3904)
Medium: Approx. 12.9 Megapixels (4800 x 2688)
Small 1: Approx. 6.8 Megapixels (3472 x 1952)
Small 2: Approx. 3.2 Megapixels (2400 x 1344)
RAW / C-RAW: Approx. 32.3 Megapixels (6960 x 4640)

1:1 Aspect Ratio
Large: Approx. 21.5 Megapixels (4640 x 4640)
Medium: Approx. 10.2 Megapixels (3200 x 3200)
Small 1: Approx. 5.4 Megapixels (2320 x 2320)
Small 2: Approx. 2.6 Megapixels (1600 x 1600)
RAW / C-RAW: Approx. 32.3 Megapixels (6960 x 4640)

Values of Pixels recorded are rounded off to the nearest 100,000th.
JPEG images are generated in the aspect ratio that was set.
RAW/C-RAW images are generated in [3:2] and the set aspect ratio is appended.

File Numbering

The following three types of file numbers can be set:
1. Continuous numbering

The numbering of captured images will continue even after you replace the card.

2. Auto reset

When you replace the card, the numbering will be reset to start from 0001. If the new card already contains images, the numbering will continue from the last recorded image in the card.

3. Manual reset

Resets the file number to 0001, and creates a new folder automatically.

Color Space

sRGB, Adobe RGB

Picture Style

1. Auto
2. Standard
3. Portrait
4. Landscape
5. Fine Detail
6. Neutral
7. Faithful
8. Monochrome
9. User Defined 1–3

In Basic Zone modes, Auto is set automatically.
In Creative Zone modes, you can select or set the Picture Style.
[Auto] is the default setting for [User Def. 1-3].

White Balance

Settings

Auto, Daylight, Shade, Cloudy*, Tungsten Light, White Fluorescent Light, Flash, Custom, Color Temperature setting
*Effective in twilight and sunset as well.

Auto White Balance

Option between ambience priority and white priority settings

Color Temperature Compensation

Blue/amber bias: ±9 levels
Magenta/green bias: ±9 levels
Corrected in reference to the current WB mode's color temperature.

Color Temperature Information Transmission

Provided

Viewfinder

Type

Eye-level SLR (with fixed pentaprism)

Coverage

Aspect Ratio	3:2	Approx. 100% vertically/horizontally
	4:3	Approx. 100% vertically Approx. 97% horizontally
	16:9	Approx. 97% vertically Approx. 100% horizontally
	1:1	Approx. 100% vertically Approx. 96% horizontally

Magnification

Approx. 0.95x (with 50mm lens at infinity, -1m-1) / 28.2° angle of view

Eye Point

Approx. 22mm (At -1m-1 from eyepiece lens center)

Dioptric Adjustment Correction

Adjustable from approx. -3.0 to +1.0 m-1 (dpt)

Focusing Screen

Fixed

Viewfinder Information

Information display on a transparent LCD screen

AF area selection mode
AF point (focusing point) information
Area AF frame
Spot metering circle
Electronic level
Grid display
Aspect line (4:3, 16:9, 1:1)
Flicker detection
Warning symbol

You can set whether to display or hide [Electronic level], [Grid display] and [Flicker detection].

Mirror Lockup

Supported

Depth Of Field Preview

Provided

Autofocus

Type

TTL secondary image-forming phase-difference detection system with AF-dedicated sensor

AF Points

Up to 45 points (Cross-type AF points: Max. 45)

AF Point and Focusing Pattern	Number of AF Points (Max.)
Dual Cross-type AF Points at f/2.8 and f/5.6	1
Cross-type AF Points at f/5.6	45
Focusing at f/8	27 (Cross-type AF point 9)

The number of AF points, cross-type AF points and dual cross-type AF points vary depending on the lens used.

Note that, with aspect ratio of 1:1, the maximum number of AF points becomes 35.
(Each left and right end line of AF points in total of ten are not usable.)

AF Working Range

One-shot AF, room temperature, ISO 100
(Based on Canon’s testing standards and environment)

AF Point	Brightness
One center AF point focusing at f/2.8	EV–3 to 18
One center AF point focusing at f/5.6	EV –1 to 18
Peripheral AF points focusing at f/5.6	EV –0.5 to 18

Focusing Mode

1. Autofocus

One-Shot AF
AI Servo AF
AI Focus AF
i. Switches between One-Shot AF and AI Servo AF automatically.

2. Manual focus

Select AF Area Selection Mode

Spot AF	Yes	-
1-point AF	Yes	Yes
Zone AF	Yes	Yes
Large Zone AF	Yes	Yes
Automatic selection AF (all AF points)	Yes	Yes

Orientation Linked AF Point

Supported

AF Microadjustment

Supported

Automatic AF point selection: EOS iTR AF

AF: EOS iTR AF
Effective pixels of metering sensor: Approx. 220,000 pixels.

EOS iTR AF (Face priority)	Face Information is given priority in tracking.
EOS iTR AF	Tracking based on factors including AF information, subject color information, and face information.
Disable	Tracking based solely on AF information.

* Applied when the AF are selection modes are Zone AF, Large Zone AF, or Auto selection AF.

AF Assist Beam

Intermittent firing of built-in flash
Effective range:
Center: Approx. 13.1 ft. / 4.0m
Periphery: Approx. 13.1 ft. / 4.0m
With an EOS-dedicated Speedlite attached, the Speedlite’s AF-assist beam is emitted instead.

Focusing Method

Dual Pixel CMOS AF

Focusing Operation

	Number of AF Points (Max.)	Movie Recording
AF Operation	• One-Shot AF • Servo AF • AI Focus AF (with Scene Intelligent Auto)1	• One-Shot AF • Movie Servo AF
Manual Focus	Supported	Supported

*Dual Pixel CMOS Af is supported with all EF and EF-S lenses.
*Contrast AF is not included.

Exposure Control

Metering Modes

216-zone (18 x 12) metering with approx. 220,000-pixel RGB+IR metering sensor and TTL full-aperture.
384-zone (24 x 16) metering using image sensor output signals (Live View and Movie Recording).
The following metering modes selectable:
(1) Evaluative metering (linked to all AF points)
(2) Partial metering on the center part of the viewfinder (approx. 6.5% of viewfinder/approx. 4.5% in live view)
(3) Spot metering (approx. 2.0% of viewfinder/approx. 2.6% in live view)
(4) Center-weighted average metering

Metering Range

OVF: EV 1–20 (room temperature, ISO 100, with evaluative metering)
Live View: EV -2–20
Movie Recording: EV 0-20

Exposure Control Systems

Creative Zone
1. Program AE (Shiftable)
2. Shutter-priority AE
3. Aperture-priority AE
4. Manual exposure
5. Bulb
6. Custom shooting mode C1 or C2

Basic Zone
1. Scene Intelligent Auto (Program AE/non-shiftable)
2. Flash Off
3. Creative Auto
4. Special Scene
    a. Food
    b. Kids
    c. Candlelight
    d. Night Portrait
    e. Handheld Night Scene
    f. HDR Backlight Control
    g. Portrait
    h. Landscape
    i. Close-up
    j. Sports
    k. Group Photo
    l. Panning
5. Creative Filters
    a. Grainy B/W
    b. Soft Focus
    c. Fish-eye Effect
    d. Toy Camera Effect
    e. Miniature Effect
    f. Water Painting Effect
    g. HDR Art Standard
    h. HDR Art Vivid
    i. HDR Art Bold
    j. HDR Art Embossed

ISO Speed Range

Manual setting

Normal ISO Speeds	ISO 100-25600 (in 1/3-stop)
Expanded ISO Speeds	ISO 51200 (equivalent)

For [Highlight tone priority], the settable ISO speed range will be ISO 200-25600.

Auto setting

Shooting Mode		ISO Settings
Shooting Mode		No Flash	With Built-in Flash	With External Flash
Creative Zone	P, Tv, Av, M	ISO 100-6400	ISO 1001-256002	ISO 1001-16002
Creative Zone	B	ISO 100-12800	ISO 400
Basic Zone	Auto	ISO 100-1600	ISO 100-1600
	Creative Filters	Other than Min. effect: ISO 100-6400 Miniature Effect: ISO 100-1600	Other than Min. effect: ISO 100-3200 Miniature Effect: ISO 100-1600	ISO 100-1600
	Portrait	ISO 100-6400	ISO 100-1600
	Group Photo	ISO 100-6400	ISO 100-6400	ISO 100-6400
	Landscape	ISO 100-1600	Does not fire
	Sports	ISO 100-6400	Does not fire	ISO 100-1600
	Kids	ISO 100-6400	ISO 100-1600
	Panning & Candlelight	ISO 100-6400	Does not fire
	Close-up & Food	ISO 100-6400	ISO 100-1600
	Night Portrait	ISO 100-800	ISO 400-800*3	ISO 100-800
	Handheld Night Scene	ISO 100-12800*2	ISO 100-6400
	HDR Backlight Control	ISO 100-6400	Does not fire

*1 ISO 200 when [Highlight tone priority] is set to [Enable] or [Enhanced].
*2 Varies depending on the maximum of [Auto range].
*3 Minimum limit may change depending on the lens.

Anti-Flicker Shooting

Provided

Exposure Compensation

Manual: ±5 stops in 1/3- or 1/2-stop increments
AEB: ±3 stops in 1/3- or 1/2-stop increments
* Indicated up to ±3 stops on the LCD panel and in the viewfinder.

AE Lock

(1) Auto AE lock

In the One-Shot AF mode with evaluative metering, AE lock takes effect when focus is achieved.

(2) Manual AE lock

In P, Av, Tv and M mode, enabled with the AE lock button. (Press again to update.)
Enabled in all metering modes.

Shooting in HDR mode (Still photos)

Adjust Dynamic Range

(1) Disable HDR
(2) Auto
(3) ±1 - ±3

Effect

(1) Natural
(2) HDR art standard
(3) HDR art vivid
(4) Art bold
(5) HDR art embossed

Continuous HDR

(1) 1 Shot only
(2) Every shot

Auto Image Align

Supported

Shutter

Type

Vertical-travel, mechanical, focal-plane shutter with all speeds electronically-controlled

Shutter Speeds

Creative Zone: 1/16000 to 30 sec., Bulb (Total shutter speed range)
* 1/16000 is only when electric shutter mode is selected.
Basic Zone: 1/8000-1sec
X-sync at 1/250 sec.

Shutter Release

Soft-touch electromagnetic release

Self Timer

10-sec. Delay, 2-sec. Delay, Continuous

Timer Shooting

Bulb Timer

Bulb exposure time settable.

Exposure time

1 sec.-99 hr. 59 min. 59 sec.

Interval Timer

Interval	1 sec.-99 hr. 59 min. 59 sec.
No. of shots	Unlimited, or 1-99

Built-in Flash

Type

Retractable flash in the pentaprism housing

Retraction Method

Manual pop-up

Guide Number

Approx. 39.4 ft./12m (at ISO 100)

Flash Coverage

Up to approx. 17mm focal length (35mm equivalent: approx. 28mm)

Flash Exposure Compensation

Up to ±3 stops in 1/3- or 1/2-stop increments
Flash exposure compensation for built-in flash and external Speedlite can be set with the camera.

External Flash Settings

1. External flash control

Flash firing
E-TTL II Flash metering
Flash mode
Radio transmission wireless functions
Optical transmission wireless functions
Zoom
Sync setting
Flash exposure compensation
FEB
Clear settings

2. External flash Custom Function setting

Multiple Exposure Shooting

Multiple-exposure shooting

Disable / Enable

Multiple-exposure Control

Additive
Average (Bright and Dark are not supported).

No. of Exposures

2-9

Continue Multiple Exposures

1 Shot Only
Continuously

Saving Source Images

Save result only

Drive System

Drive Mode

1. Single shooting
2. High and Low-speed continuous shooting
3. Continuous shooting (panning)
4. Silent single and continuous shooting
5. Continuous: self-timer
6. 10-sec. Self-timer/remote control
7. 2-sec. Self-timer/remote control

Focus Bracketing

Available

Continuous Shooting Speed

Drive Mode and Continuous Shooting Speed:

Drive Mode		Viewfinder shooting	Live View Shooting
Single Shooting		Yes	Yes
High-speed continuous shooting *1	One-Shot AF	Max. approx 10 shots/sec.	Max. approx 11 shots/sec.
	One-Shot AF (with flash)	Yes	Yes
	AI Servo AF /Servo AF	Max. approx 10 shots/sec.	Max. approx 7 shots/sec*2
	Manual	Max. approx 10 shots/sec.	Max. approx 11 shots/sec.
Low-speed continuous shooting	One-Shot AF (no flash)	Max. approx 3 shots/sec.	Max. approx 3 shots/sec.
	One-Shot AF (with flash)	Yes	Yes
	AI Servo AF /Servo AF	Max. approx 3 shots/sec.	Max. approx 3 shots/sec.
Continuous Shooting*3	Panning	Max. approx. 5.7 shots/sec.	Max. approx. 4.3 shots/sec
Silent single shooting		Yes
Silent continuous shooting		Max. approx. 3 shots/sec
Self-timer: 10 sec / remote control		Yes (BR-E1: Supported / RC-6: Supported)
Self-timer: 2 sec / remote control		Yes	Yes
Self-timer: Continuous		Yes (2-10 shots)	Yes (2-10 shots)

*1 Maximum continuous shooting speed with flicker reduction may drop to approx. 7 shots/sec.
*2 Values are for electronic first-curtain shooting. (Slower for mechanical shutter.)
*3 With shutter speed 1/125 sec. (For Panning, shutter speed is set automatically)

Image File Size/Number of Possible Shots/Maximum Burst During Continuous Shooting:

Image Recording Quality	File Size (Approx. MB)	Number of Possible Shots (Approx.)*1	Maximum Burst (Approx.)
Image Recording Quality	File Size (Approx. MB)	Number of Possible Shots (Approx.)*1	Standard*1	High-speed (UHS-II)
Large/Fine	11.1	2720	57	58
Large/Normal	5.6	5380	57	58
Medium 1/Fine	5.8	5190	55	55
Medium 1/Normal	3.0	9860	57	56
Small 1/Fine	3.6	8390	57	57
Small 1/Normal	2.0	14600	57	57
Small 2	1.6	18390	57	57
RAW	35.6	850	24	25
C-RAW	20.4	1490	39	39
RAW + Large/Fine	35.6 + 11.1	650	23	24
C-RAW + Large/Fine	20.4 + 11.1	960	37	36

*1 The number of possible shots and maximum burst apply to a UHS-I compliant 32GB card based on Canon’s test standards.
*2 The number of possible shots and maximum burst applies to a UHS-II compliant 32GB card based on Canon's test standards.
The file size, number of possible shots and maximum burst will vary depending on shooting conditions (aspect ratio, subject, memory card brand, ISO speed, Picture Style, etc.).

Live View Functions

Shooting Modes

Still photo and video recording

Focusing

1. Dual Pixel CMOS AF

Dual Pixel CMOS AF is possible with all EF and EF-S lenses.
Contrast AF is not provided.

2. Manual focus

Magnify the image by 5x or 10x and focus manually.

* AE lock possible. The active metering timer can be changed.

Metering Modes

1. Evaluative metering (216-zone)
2. Partial metering (approx. 6.5% of Live View screen)
3. Spot metering (approx. 2.0% of Live View screen)
4. Center-weighted average metering

Metering Range

EV 0-20 (room temperature, ISO 100, with evaluative metering)

Grid Display

1. 3x3
2. 6x4
3. 3x3+diag

Exposure Simulation

Possible

Silent Shooting

Provided (Mode 1 and Mode 2)

Image Processing After Shooting

In-camera RAW Image Processing

Brightness adjustment (up to ±1 stops in 1/3-stop increments), white balance: auto white balance provides [Ambience priority] and [White priority] settings, picture style: [Fine detail] is available, for sharpness [Fineness] and [Threshold] are available. Auto lighting optimizer: supported high ISO speed NR: supported, image quality and color space: supported. Lens aberration correction: peripheral illum correction, chromatic aberration correction, diffraction correction, distortion correction, digital lens optimizer.

Video Shooting

File Format

MP4:
Movie: MPEG-4 AVC/H.264
* Variable (average) bit rate
Audio: AAC

4K Movie Recording

Cropped and Uncropped

Time-lapse Movie

Supported

Video Snapshots

Supported

Creative Filters (Movie)

Resolution	Frame Rate (fps)	Compression Method	Recording Format	Audio
Full HD (1920 x 1080)	29.97	IPB (Standard) IPB (Light)	MP4	AAC

*Magnified view is not available in Live View shooting.
*Creative filters are not available when the movie recording size is set to a size incompatible with creative filters.

HDR Movie

Supported
*EOS 90D Camera alternately captures underexposed and standard exposure frames to record a single frame that combines them so that even high-contrast scenes can be recorded with less loss of detail in highlights. (Does not compensate for loss of detail in shadows).
*HDR movie is available in Special scene modes.

Resolution	Frame Rate (fps)	Compression Method	Recording Format	Audio
Full HD (1920 x 1080)	29.97	IPB (Standard)	MP4	AAC

High Frame Rate Movies

	Full HD/HD	Frame Rate (fps)
During Recording*	Full HD (1920 x 1080)	119.88
During Playback	Full HD (1920 x 1080)	29.97
During HDMI Output	Full HD (1920 x 1080)	59.94

* Movie recording is interrupted if the maximum recording time per movie, 7 min. 29 sec., is exceeded.
Note that Movie Servo AF, audio recording, and Movie digital IS are not available during recording.

Movie Digital IS

Movie Digital IS setting	Full HD/HD	Without 4K Cropping	With 4K Cropping
Disable	Approx. 100%	Approx. 100%	Approx. 84%
Enable	Approx. 90%	Approx. 90%	Approx. 75%
Enhanced	Approx. 70%	Approx. 70%	Approx. 58%

HDMI Output

HDMI Resolution	Auto / 1080p
HDMI output for movie footage	Supported (HDMI information display)
HDMI HDR output	Supported
Color sampling method	Uncompressed YCbCr 4:2:2, 8-bit Uncompressed YCbCr 4:2:2, 10-bit Uncompressed RGB, 8-bit
Color space	BT.709, BT.601, BT.2020

• Content in the output format set on the camera is displayed on the device connected via HDMI.
• The content that can be displayed varies depending on the specifications of the monitor connected via HDMI. Thus,display matching camera settings may not be supported.

File Size

MP4:

4K (3480 x 2160)	29.97 fps	IPB
1920 x 1080	59.94 fps	IPB
	29.97 fps	IPB
	29.97 fps	IPB (Light)
	23.98 fps	IPB
1280 x 720	59.94 fps	IPB
1280 x 720	29.97 fps	IPB (Light)

Frame Rates

MP4:
1920 x 1080 (Full HD): 60 fps (59.94 fps) / 30 fps (29.97 fps) / 24 fps (23.98 fps)
1280 x 720 (HD): 60 fps (59.94 fps) / 30 fps (29.97 fps)

Continuous Shooting Time

MP4 Format

Movie-recording Size			Total Recording Time per Card (Approx.)			Movie Bit Rate / File Size
Movie-recording Size			8GB	32GB	128GB	Movie Bit Rate / File Size
4K (UHD) 3840 x 2160	Uncropped 29.97 fps	IPB	8 min.	35 min.	2 hr. 21 min.	120 Mbps 860MB
4K (UHD) 3840 x 2160	Cropped 29.97 fps	IPB	8 min.	35 min.	2 hr. 21 min.	120 Mbps 860 MB
Full HD 1920 x 1080	High Frame Rate movies 119.88 fps	IPB	8 min.	35 min.	2 hr. 22 min.	120 Mbps 858MB
	59.94 fps	IPB	17 min.	1 hr. 10 min.	4 hr. 43min.	60 Mbps 431MB
	29.97 fps	IPB	35 min.	2 hr. 20 min.	9 hr. 23 min.	30 Mbps 216MB
	29.97 fps	IPB (Light)	1 hr. 26 min.	5 hr. 47 min.	23 hr. 11 min.	12 Mbps 87MB
HD 1280 x 720	59.94 fps	IPB	40 min.	2 hr. 42 min.	10 hr. 49 min.	26 Mbps 187MB
HDR Movie Shooting (1920 x 1080)	29.97 fps	IPB	35 min.	2 hr. 20 min.	9 hr. 23 min.	30 Mbps 216MB

* Bit rate indicates video output only, audio is not included.
* With MP4, if the recording time reaches 29 min. 59 sec., the movie shooting stops automatically. (Time is different for High Frame Rate movies.)
* Sound is not recorded for approx. the last two frames when the compression method for movie recording quality is IPB or IPB (Light) (audio: AAC) and [C.Fn III-5 Audio compression] is set to [Enable].
* The video and sound may be slightly out of sync when movies are played back in Windows.

Focusing (Live View Mode)

1. Dual Pixel CMOS AF
* Contrast AF is not possible.
2. Manual focus
* Magnify the image by 5x or 10x and focus manually. (You cannot magnify the image during movie shooting.)

Exposure Compensation

±3 stops in 1/3- or 1/2-stop increments*
Likewise ±3 stops for still photo shooting.

LCD Monitor

Type

TFT color, liquid-crystal monitor

Touch Screen

Supported

Monitor Size

Wide 3.0-inch (Screen aspect ratio of 3:2)
Approx. 3.0 in. Diagonal (approx. 2.5 in. wide, approx. 1.7 in. high)

Pixels

Approx. 1.04 million dots

Coverage

Approx. 100%
Viewing angle: Approx. 170° vertically and horizontally

Brightness Control

Adjustable to one of seven levels

Coating

Anti-smudge coating

Interface Languages

29 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Ukraine, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Malay, Indonesian, and Japanese)

Tilt Display

On LCD Monitor

Single image display:

No information
Basic information
Detailed shooting information display
   Basic shooting information
   Lens information and RGB histogram
   White balance
   Picture Style 1, 2
   Color space and noise reduction
   Lens aberration correction
   GPS information
   Record of sent images

Index display:

4-image index
9-image index
36-image index
100-image index

Playback

Highlight Alert

With single image display, overexposed highlight areas will blink.

Histogram

Brightness and RGB

Rating

OFF ☆ to ☆☆☆☆☆
Select images / Select image / All images in folder / All images on card / All found images

Image Search

Search Conditions
Rating / Date/ Folder /Protect / Type of file

Slide Show

Display time 1-20 sec.
Repeat: Enable / Disable
Transition effect: Off /Slide in 1-2 / Fade 1-3
Background music: Off / On

Quick Control Function

Shortcut

Pressing the Quick Control button during Viewfinder shooting, Live View shooting, movie shooting or playback displays the Quick Control screen.

Image Protection and Erase

Protection

Erase protection can be applied or canceled for a single image, all images in a folder or all images in the card.

Erase

Erase a single image, selected images, all images in a folder or all images in a card.

Direct Printing

Compatible Printers

PictBridge-compatible printers (wireless LAN)

Printable Images

JPEG images compliant to Design rule for Camera File System.
RAW images captured
Movies cannot be printed.

DPOF: Digital Print Order Format

DPOF

Compliant to DPOF Version 1.1

Direct Image Transfer

Compatible Images

Not provided

Customization

Custom Functions

29 Custom Functions are settable.

Custom Controls

Functions can be assigned to the following buttons:

Shutter button halfway pressing
AF-ON button
AE lock button
Depth-of-field preview button
Lens AF stop button
SET button
Main Dial
Quick Control Dial
Multi controller 1 and 2 (Same functions can be set.)

Multi Function Lock

The following controls can be locked:

Main dial
Quick control dial
Multi-controller 1 and 2
Touch control

My Menu Registration

Up to six top-tier menu options and Custom Function settings can be registered.
Up to five My Menu tabs can be added.

Interface

USB Terminal

Hi-Speed USB (USB 2.0)

For PC communication
For GP-E2 connection
For Connect Station connection

Terminal Type

Micro-B

Video Out Terminal

HDMI Type C (Resolution switches automatically), CEC not supported.

Video is not displayed unless the video format appropriate for the connected TV set, [NTSC] or [PAL], is set.

Power Source

Battery

Battery Pack LP-E6N (or LP-E6) x 1

When the battery grip is used, two battery packs (LP-E6N or LP-E6) can be installed.
Also usable with six AA/R6 batteries.

Number of Shots

Mode	Shooting Method	Battery	Temperature	Possible Shots (approx.)
Mode	Shooting Method	Battery	Temperature	AE Shooting	With Flash (50%)
Camera Body Only	Viewfinder Shooting	LP-E6N	At 73°F/23°C	1860	1300
	Viewfinder Shooting	LP-E6N	At 32°F/0°C	1850	1200
	Live View Shooting	LP-E6N	At 73°F/23°C	510	450
	Live View Shooting	LP-E6N	At 32°F/0°C	500	440
With Battery Grip	Viewfinder Shooting	LP-E6N x2	At 73°F/23°C	3710	2590
		LP-E6N x2	At 32°F/0°C	3690	2390
		AA/R6 Alkaline Batteries	At 73°F/23°C	210	200
		AA/R6 Alkaline Batteries	At 32°F/0°C	40	30
		AA/R6 Ni-MH Batteries	At 73°F/23°C	1860	1230
		AA/R6 Ni-MH Batteries	At 32°F/0°C	1840	1220
	Live View Shooting	LP-E6N x2	At 73°F/23°C	1010	890
		LP-E6N x2	At 32°F/0°C	990	870
		AA/R6 Alkaline Batteries	At 73°F/23°C	50	50
		AA/R6 Alkaline Batteries	At 32°F/0°C	10	10
		AA/R6 Ni-MH Batteries	At 73°F/23°C	490	420
		AA/R6 Ni-MH Batteries	At 32°F/0°C	430	390

Battery Check

Automatic battery check when the power switch is turned ON. Displayed in 6 levels.

Battery level displayed on LCD panel and in viewfinder.
Displayed in four levels with the battery grip with AA/R6 batteries.

Power Saving

Power turns off after the set time (10/30*sec., or 30 sec., 1, 2, 4, 8, or 15min.) of non-operation elapses.

*Set to 10 sec. normally and 30 sec. when setting functions, in Live View shooting and during image playback.

Date/Time Battery

Built-in secondary battery
Maintains date/time for about 3 months when fully charged

Recharge time: approx. 8 hr.
To become capable to maintain the right date/time for one month after main battery power depletion.

Start-up Time

Approx. 0.2 sec. (Based on CIPA testing standards)

Excluding the recognition time for genuineness (genuine Canon battery) at the installation of the battery.

Dimensions and Weight

Dimensions (W x H x D)

Approx. 5.54 x 4.13 x 3.03 in. / 140.7 x 104.8 x 76.8mm

Weight

Approx. 24.73 oz. / 701g (Based on CIPA guidelines)
Approx. 21.83 oz. / 619g (Body only; excluding the battery, card, body cap and eye cup)

Canon CarePAK Plus Offer

Canon EOS 90D 32.5MP APS-C CMOS Sensor Digital SLR Camera (Body)

Canon EOS 90D DSLR Digital SLR Camera Body Deluxe Case & Accessory Kit Bundle

Canon EOS 6D Mark II 26.2MP Full-Frame Digital SLR Camera (Body Only)

Canon EOS 6D Mark II MK 2 DSLR Digital SLR Camera Body Photo Video Accessories Bundle
