AKG P220 Vocal Condenser Studio Microphone with Case and Shock Mount (3101H00420)



Professional Projects

The P220 is a large-diaphragm true condenser microphone offering a warm and clear sound for lead vocals, acoustic guitar and brass instruments. A switchable bass-cut filter and attenuation pad make it perfectly suited for use on loud sound sources with sound pressure levels up to 155dB SPL. The rugged and roadworthy design also makes the P220 a perfect choice for on-stage applications.

The P220 represents the most popular and successful microphone within the actual Project Studio Line. It comes complete with a spider-type shock mount in an aluminum carrying case.

Product Highlights:

Cardioid Polar Pattern

Audio frequency bandwidth 20 - 20000 Hz

Equivalent noise level 16 dB-A

Sensitivity 20 mV/Pa

Signal to Noise 70 dB-A

Preattenuation Pad -20 dB

Bass cut filter 300 Hz - 12 dB/octave

Electrical impedance <= 200 Ohms

Product Features:

Rugged All-Metal Body and Robust Design

Withstands tough day-to-day use.

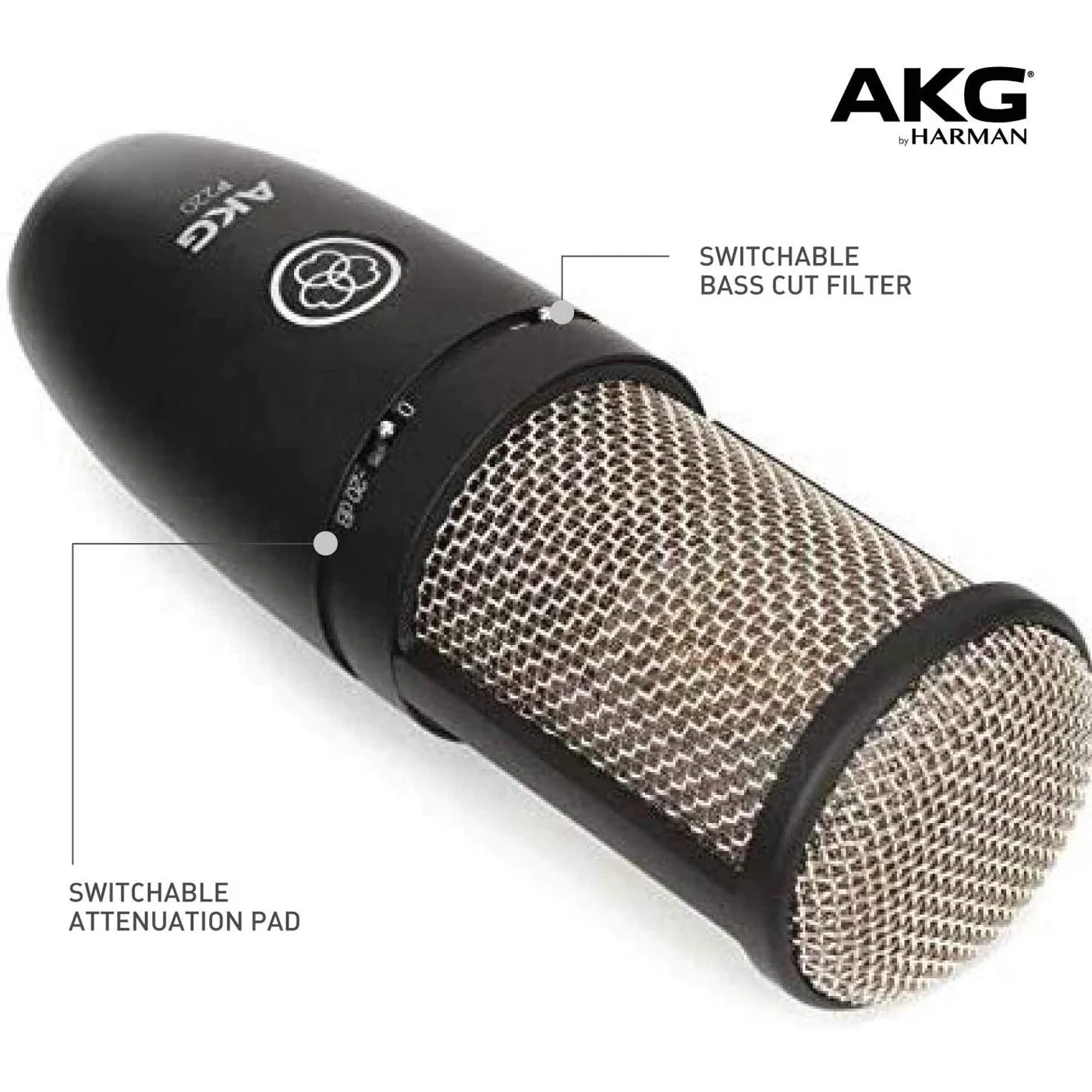

Switchable Bass-Cut Filter

Eliminates rumble or footfall noise.

Switchable Attenuation Pad

For high SPL applications up to 155 dB SPL.

Product Specifications:

General Specifications

Polar Pattern - Cardioid

Audio frequency bandwidth - 20 - 20000 Hz

Equivalent noise level - 16 dB-A

Sensitivity - 20 mV/Pa

Signal to Noise - 78 dB-A

Preattenuation Pad - -20 dB

Bass cut filter - 300 Hz - 12 dB/octave

Electrical impedance - <= 200 Ohms

Recommended load impedance - >= 1000 Ohms

Dimensions

Length - 165 mm

Diameter - 54 mm

Net Weight - 530 g

Audio Output

Type - Balanced XLR

Gender - Male

Contacts - 3-pin

Powering Interface

Voltage - 44 to 52 V

Current - <= 3 mA

Application

Project Studio - Yes

Live Instrument - Yes

Instrument

Vocals - Yes

Piano / Strings - Yes

Horns / Woodwinds - Yes
