ASUS ROG Rapture WiFi 6 AX Gaming Router - GT-AX6000

ASUS ROG GT-AX6000 Dual-Band WiFi 6 (802.11ax) Gaming Router; Dual 2.5G ports; enhanced hardware; WAN aggregation; VPN Fusion; Triple-Level Game Acceleration; free network security and AiMesh support.

Dual 2.5G Network Ports

GT-AX6000 has dual 2.5 Gbps Ethernet ports that support link aggregation and load balancing; giving you the flexibility to give massive bandwidth to connected devices or take advantage of ultra-highspeed internet connections.

WAN Aggregation

WAN aggregation lets you to combine a 2.5 Gbps port and a 1 Gbps port to unlock up to 3.5 Gbps of WAN bandwidth; fast enough for even the latest ultra-high-speed ISPs. This massive internet bandwidth can be shared via WiFi 6 or the second 2.5 Gbps LAN port.

LAN Aggregation

Using LAN aggregation you can bond two 1 Gbps LAN ports together to create a 2 Gbps LAN connection; which is great for supplying extra bandwidth to heavy-duty network devices such as your compatible NAS or desktop PC.

Beyond Performance

GT-AX6000 is powered by a 2.0 GHz quad-core 64-bit CPU; giving it the performance to handle even the most demanding gaming network. It delivers maximum network throughput by 18% for lightning-fast; accelerating data transfers and optimizing your gaming experience.

Expanded Coverage with RangeBoost Plus

ASUS RangeBoost Plus is the latest; most powerful version of our renowned RangeBoost technology; which can improve the coverage and WiFi performance significantly compare to other models without RangeBoost. By using a next-gen flagship Broadcom WiFi chipset and CPU; combined with ASUS RF technology and other exclusive ASUS technologies; RangeBoost Plus leverages multiple upgraded ASUS features that improve WiFi signal range and overall coverage by up to 38%.

Extendable Router technology with AiMesh

All ASUS Extendable Routers can connect with each other to create one seamless mesh WiFi network. Upgrade your network to a scalable solution while eliminating deadzones with ASUS Extendable Routers.

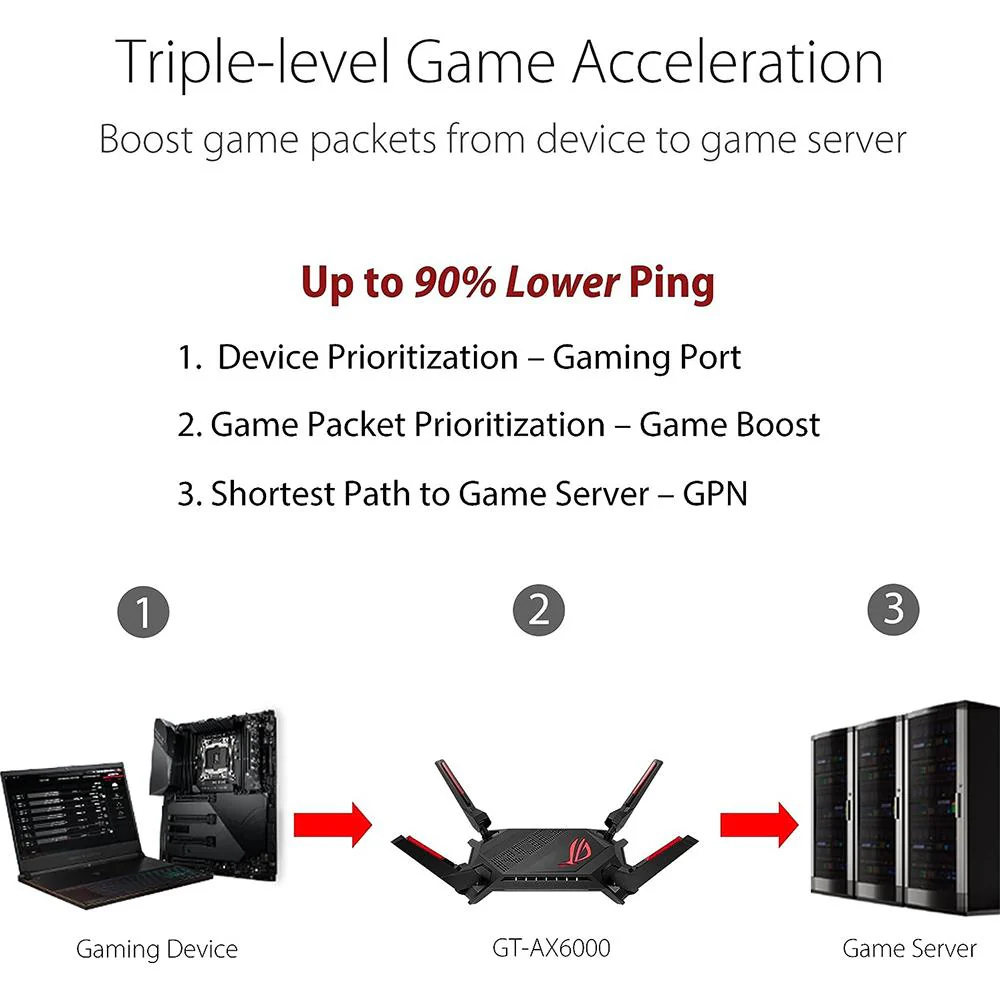

Triple-level Game Acceleration

GT-AX6000 boosts your gaming traffic every step of the way; from your PC all the way to the game server. The exclusive triple-level game acceleration stabilizes your connections to prevent jitter; reduce lag; lower ping and increase speed for amazing gaming experiences.

Boost your game with one click

Minimize lag and latency for mobile gaming with just a tap on the ASUS Router app.

3-Step Port Forwarding

Join your clan smoothly and quickly GTAX6000's OpenNAT feature; with only three steps needed to configure port forwarding. Say goodbye to frustrating and complicated procedures!

Product Features:

• High-Efficiency WiFi 6 - Ultrafast WiFi 6 dual-band router boosts speed up to 6000 Mbps; with 160 MHz channels for better efficiency and throughput
• Dual 2.5G Ports - Traffic via 2.5G ports has top priority; flexible WAN/LAN network port configurations
• Extreme Quad-Core CPU Power - High-performance 2.0 GHz quad-core 64-bit CPU takes computational capabilities to the next level
• Expanded coverage - The exclusive ASUS RangeBoost Plus improves signal range and overall coverage
• Triple-Level Game Acceleration - Accelerate game traffic every step of the way from device to game server

Specifications:

• Network Standard:
• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11n
• IEEE 802.11ac
• IEEE 802.11ax
• IPv4
• IPv6
• Product Segment: AX6000 ultimate AX performance
• WiFi Data Rate:
• 2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz; up to 1148Mbps
• 5GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz; up to 4804Mbps
• Antenna: External antenna x 4
• Transmit / Receive:
• 2.4GHz 4x4
• 5GHz 4x4
• Processor: 2.0 GHz quad-core processor
• Memory: 256 MB Flash; 1 GB RAM
• Boosts Speed:
• OFDMA (Orthogonal Frequency Division Multiple Access)
• Beamforming: standard-based and universal
• 1024-QAM high data rate
• 20/40/80/160 MHz bandwidth
• Operating Frequency: 2.4G Hz / 5 GHz
• Operating Mode: Accesspoint; AiMeshnode; Mediabridge; Repeater; Router

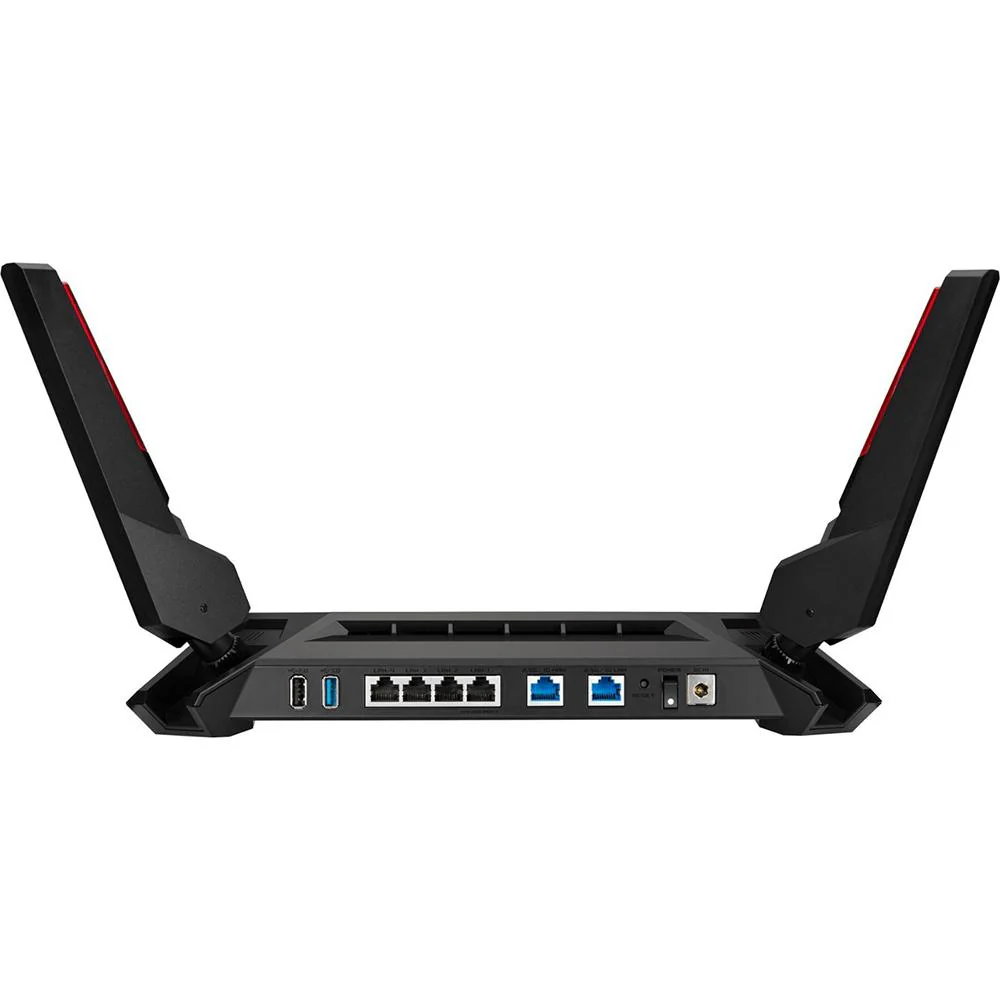

• I/O Ports:
• RJ45 for 2.5 Gigabits BaseT for WAN/LAN x 1
• RJ45 for 2.5 Gigabits BaseT for LAN x 1
• RJ45 for Gigabits BaseT for LAN x 4
• USB 3.2 Gen 1 x 1
• USB 2.0 x 1
• Buttons: WPS Button; Reset Button; Power Button; LED Control Button
• LED Indicator:
• Power x 1
• 2.4GHz x 1
• 5GHz x 1
• 2.5G WAN x 1
• 2.5G LAN x 1
• LAN x 1
• WPS x 1
• Power Supply:
• AC Input: 110V~240V(50~60Hz)
• DC Output: 19 V with max. 2.37 A current or 19.5 V with max. 2.31 A current
• AiMesh:
• Primary AiMesh Router
• AiMesh Node
• Game:
• Game Boost / Acceleration
• ROG_First
• OpenNAT (Game Profile)
• Gaming Port
• Parental Control:
• "Allow you to block access to unwanted websites and apps."
• Parental Control Customized Internet Schedule
• Guest Network:
• "The Guest Network provides Internet connection for guests but restricts access to your local network."
• Maximum Guest Network Rule: 2.4GHz x3; 5GHz x3
• Guest Network Connection time limit
• Guest Network Encryption: Open system; WPA/WPA2/WPA3-Personal
• Security:
• WiFi Encryption: Open system; WPA/WPA2/WPA3-Personal; WPA/WPA2-Enterprise
• WPS
• SSH
• Firewall
• Maximum Firewall Keyword Filter: 64
• Maximum Firewall Network Service Filter: 32
• Maximum Firewall URL Filter: 64
• AiProtection:
• AiProtection Pro
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking
• VPN:
• VPN Client L2TP
• VPN Client Open VPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server Open VPN
• VPN Server PPTP
• VPN Server WireGuard
• VPN Fusion
• Traffic Control:
• Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter: Maximum Bandwidth Limiter Rule: 32
• Traditional QoS: Maximum Traditional QoS Rule: 32
• Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
• Traffic Analyzer
• Traffic Analysis Period: Daily; Weekly; Monthly
• Website History
• WAN:
• Internet Connection Type: PPPoE; PPTP; L2TP; Automatic IP; Static IP
• Dual WAN
• WAN Aggregation
• 3G / 4G LTE Dongle
• 4G / 5G Auto Mobile Tethering
• Port Forwarding
• Maximum Port Forwarding Rule: 64
• Port Triggering
• Maximum Port Triggering Rule: 32
• DMZ
• DDNS
• NAT Passthrough: PPTP; L2TP; IPSec; RTSP; H.323; SIP Passthrough; PPPoE relay
• LAN:
• DHCP Server
• IGMP Snooping
• IPTV
• LAN Link Aggregation
• Manually Assign IP Address
• Maximum Manually Assign IP Address Rule: 64
• Wake on LAN (WOL)
• Wireless:
• MU-MIMO
• UTF-8 SSID
• WiFi MAC Address Filter: Maximum MAC Filters: 64
• Wireless Scheduler
• Airtime Fairness
• RADIUS Client
• Universal Beamforming
• Explicit Beamforming
• USB application:
• 4G / 5G Auto Mobile Tethering
• File System: HFS+; NTFS; vat; ext2; ext3; ext4
• Safely Remove Disk
• AiCloud
• Download Master
• AiDisk
• Media Server
• Time Machine
• Samba Server
• FTP Server
• Shared Folder Privileges
• User Interface: Operating system: ASUSWRT
• Administration:
• Configuration Backup and Restore
• Diagnosis Tools
• Feedback System
• System Log
• Product Dimensions (W x H x D): 337.7 x 196.0 x 220.9 mm
• Product Weight: 1121.4 g
