ASUS Prime Z790-P WiFi LGA 1700 ATX Motherboard - PRIMEZ790-PWIFI

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel Core Processors. Boasting a robust power design; comprehensive cooling solutions and intelligent tuning options; PRIME Z790-P WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

AI Cooling ll

AI Cooling II balances the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test; and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.

Cooling

The PRIME Z790-P WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

M.2 Heatsinks: An M.2 heatsink takes care of the two M.2 slots; warding off throttling that can occur with M.2 storage during sustained transfers.

Removable captive screws reduce risk of drops or loss during heatsink removal.

VRM Heatsinks and Thermal Pads

The extensive surface area of the massive heatsinks cover the VRMs and chokes to improve heat dissipation. Together with specially engineered thermal pads; they improve heat transfer from the MOSFETs and chokes for better cooling performance.

Robust Power Design

Stable power is essential to extract every last bit of performance out of Intel processors. The PRIME Z790-P WIFI is geared to cater to the demands of these high-core-count CPUs.

ProCool Connectors: Proprietary connectors augment the motherboard's link to the PSU with 4 + 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.

14 + 1 Teamed Power Stages: 14 + 1 power stages combine high-side and low-side MOSFETS and drivers into packages rated for 50 amperes each; delivering power; efficiency; stability and performance to latest Intel processors.

AEMP II for Ultimate DDR5 Performance

ASUS Enhanced Memory Profile II (AEMP II) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on a CPU and memory module's ability to train the memory chips on your kit; and it presents an optimized clock speed that can effortlessly unleash performance.

Built through a flexible training method; AEMP II makes it easy to not only tune the memory above baseline settings; but also to maintain the stability of system operations; whether getting the most out of an entry-level module or priming a high-speed kit for ultimate performance.

Three M.2 Slots (up to 64 Gbps)

PRIME Z790-P WIFI offers a total of three M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0; enabling quicker boot-up and app load times with OS or application drives.

PCIe 5.0 Slot

PCIe 5.0 offers twice the data transfer speed of PCIe 4.0; making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits; such as electrical changes to improve signal integrity; backward-compatible CEM connectors for add-in cards; and compatibility with previous versions of PCI Express.

WiFi 6E

The Intel WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users; it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.

Thunderbolt 4 (USB4 compliant)

The PRIME Z790-P WIFI motherboard features USB4 support via a Thunderbolt (USB4) header. With an ASUS add-on card; PRIME motherboards can enable bi-directional speeds of up to 40 Gbps on a single cable; while providing power to fast-charge device. Additionally; this card has a daisy-chain function for multi-screen connection and supports up to dual displays with 4K resolution.

Product Features:

• Enhanced Power Solution - 14+1 DrMOS; ProCool connector; alloy chokes and durable capacitors for stable power delivery
• Comprehensive Cooling - Large VRM heatsink; flexible M.2 heatsink; PCH heatsink; hybrid fan headers and Fan Expert 4
• Boosted Memory Performance - ASUS OptiMem II proprietary trace layout allows memory kits to operate at higher frequencies with lower voltages to maximize system performance
• Ultrafast Connectivity - PCIe 5.0; DDR5; WiFi 6; Realtek 2.5Gb Ethernet; USB 3.2 Gen 2x2 Type-C; front panel USB 3.2 Gen 2 Type-C; Thunderbolt 4(USB4) header support

Specifications:

• CPU:
• Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors; Intel Core 12th Gen; Pentium Gold and Celeron Processors
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
• Refer to www.asus.com for CPU support list
• Intel Turbo Boost Max Technology 3.0 support depends on the CPU types
• Chipset: Intel Z790 Chipset
• Memory:
• 4 x DIMM; Max. 192GB; DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC; Un-buffered Memory
• Dual Channel Memory Architecture
• Supports Intel Extreme Memory Profile (XMP)
• OptiMem II
• Supported memory types; data rate(Speed); and number of DRAM modules vary depending on the CPU and memory configuration; for more information refer to www.asus.com for memory support list.
• Non-ECC; un-buffered DDR5 memory supports On-Die ECC function
• Graphics:
• 1 x DisplayPort
• 1 x HDMI port
• Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
• Supports max. 4K@60Hz as specified in DisplayPort 1.4
• Supports 4K@60Hz as specified in HDMI 2.1.
• Expansion Slots:
• Intel Core Processors (14th & 13th & 12th Gen)
• 1 x PCIe 5.0 x16 slot
• Intel Z790 Chipset
• 3 x PCIe 4.0 x16 slots (support x4 mode)
• 1 x PCIe 3.0 x1 slot
• Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
• To ensure compatibility of the device installed; please refer to https://www.asus.com/support/ for the list of supported peripherals.
• Storage:
• Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
• Intel Core Processors (14th & 13th & 12th Gen)
• M.2_1 slot (Key M); type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• Intel Z790 Chipset
• M.2_2 slot (Key M); type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_3 slot (Key M); type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
• 4 x SATA 6Gb/s ports
• Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10; SATA RAID 0/1/5/10
• Ethernet: 1 x Realtek 2.5Gb Ethernet
• Wireless & Bluetooth:
• Wi-Fi 6
• 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5GHz frequency band
• Bluetooth v5.2
• USB:
• Rear USB (Total 8 ports)
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
• 1 x USB 3.2 Gen 2 port (1 x Type-A)
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 9 ports)
• 1 x USB 3.2 Gen 2 connector (supports USB Type-C)
• 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• USB_E1 port; USB_E2 port; USB_E3 port and USB_E4 port share the bandwidth
• USB_E5 port; USB_E6 port; USB_E7 port and USB_E8 port share the bandwidth
• Audio:
• Realtek 7.1 Surround Sound High Definition Audio CODEC
• Supports: Jack-detection; Multi-streaming; Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
• Audio Features
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output
• Back Panel I/O Ports:
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
• 1 x USB 3.2 Gen 2 port (1 x Type-A)
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port
• Internal I/O Connectors:
• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 3 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x 4-pin +12V Power connector
• Storage related
• 3 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 2 connector (supports USB Type-C)
• 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 2 x Aura RGB headers
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x S/PDIF Out header
• 1 x SPI TPM header (14-1pin)
• 1 x 20-5pin System Panel header
• 1 x Thunderbolt (USB4) Header
• Special Features:
• Asus 5X Protection III
• DIGI+ VRM (- Digital power design with DrMOS)
• LANGuard
• Overvoltage Protection
• SafeSlot Core+

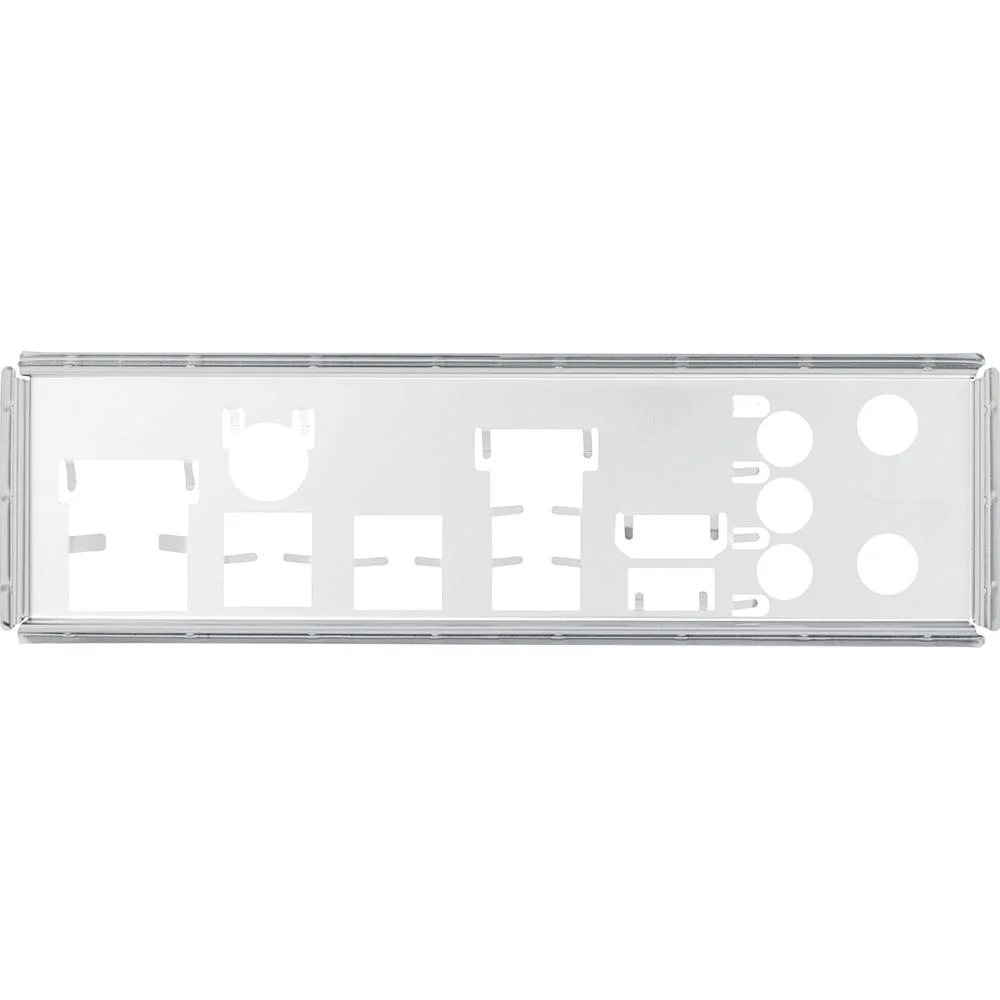

• Stainless-Steel Back I/O
• ASUS Q-Design
• Q-DIMM
• Q-Slot
• Q-LED Core
• ASUS Thermal Solution
• Flexible M.2 heatsink
• VRM heatsink design
• ASUS EZ DIY: ProCool
• Aura Sync:
• AURA RGB header
• Addressable Gen 2 headers
• Software Features:
• ASUS Exclusive Software
• Armoury Crate
• Aura Sync
• Fan Expert 4 (with AI Cooling II)
• Power Saving
• AI Suite 3
• TurboV EVO
• PC Cleaner
• DIGI+ VRM
• ASUS CPU-Z
• MyASUS
• Norton 360 Deluxe (60 Days Free Trial)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
• BIOS: 192 (128+64) Mb Flash ROM; UEFI AMI BIOS
• Manageability: WOL by PME; PXE
• Operating System: Windows 11; Windows 10 64-bit
• Form Factor:
• ATX Form Factor
• 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm)
