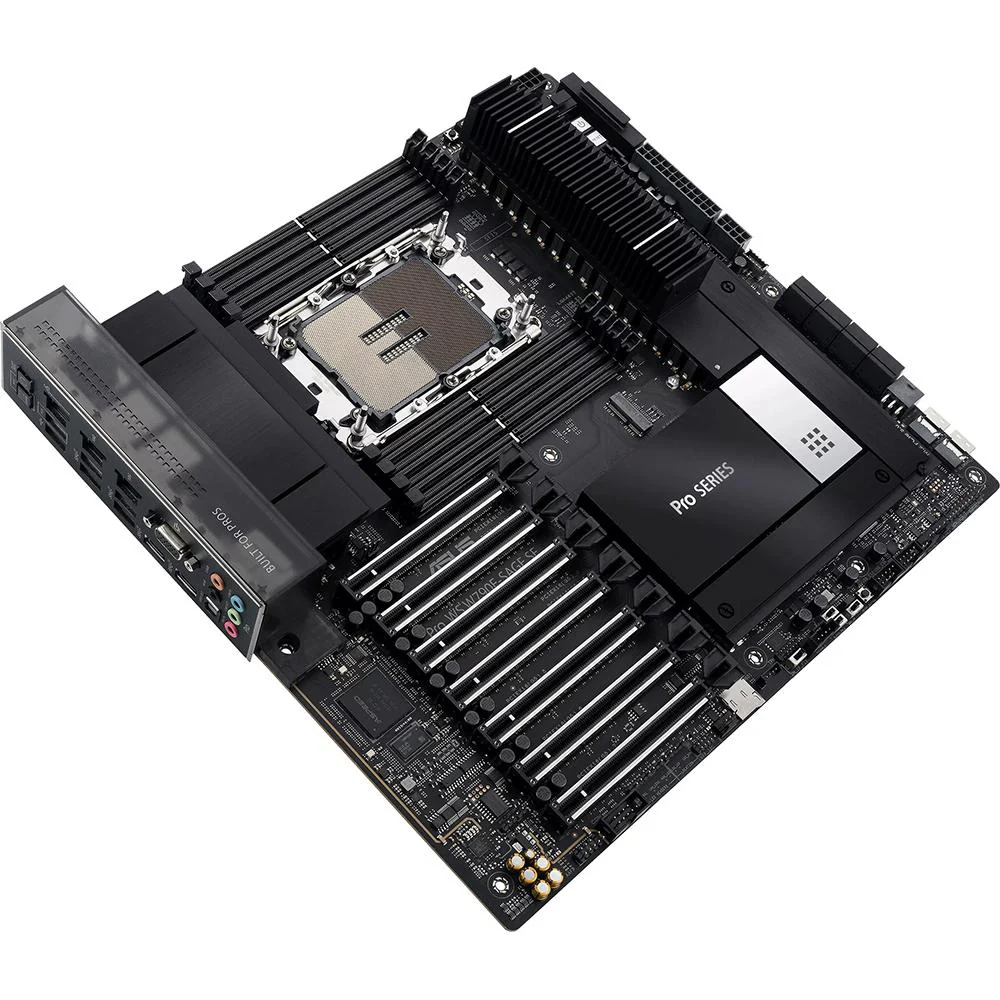

ASUS Intel W790 LGA 4677 EEB Workstation Motherboard - PROWSW790E-SAGESE

Low-profile professionalism​​

With metallic black aluminium extrusions; stainless steel black mesh with highlighted details; and a transparent smoky gray I/O cover; Pro WS W790 series presents a professional; low-profile look for content creators.

Multi-GPU support

Pro WS W790E-SAGE SE features seven PCIe 5.0 x16 slots for high-powered graphics cards; enabling enhanced performance for professional design; modeling and simulation; and rendering applications.

14+1+1 Power stages

Pro S W790E-SAGE SE's VRM is comprised of 14+1+1 power stages; and delivers the power and efficiency that the latest Intel processors demand.

8-pin and 6-pin power connectors

Additional PCIe 8-pin and 6-pin power connectors can add power output stability when creators and developers use many graphic cards onboard.

Reliability with supreme memory overclocking

The Pro WS W790E-SAGE SE supports 8-channel 1DPC DDR5 RDIMM ECC memory; allowing automatically to detect and correct data corruption; reducing the chance of system crashes. Being infused with deliberate memory trace layout; this motherboard enables DDR5 memory overclocking with maxed-out speeds to provide better memory performance for a diverse range of workloads.

Ultrafast Connectivity To Power Creativity

Intel X710-AT2 Dual 10G Ethernet: Featuring fual onboard 10G LAN ports; the Pro WS W790E-SAGW SE makes short work of multi-terabyte transfers from your creativity with low-latency.

3 M.2

Three onboard M.2 22110 slots on the Pro WS W790E-SAGE SE; two wired for PCIe 5.0 and one for PCIe 4.0; make it easy to install an initial set of drives. Creators working with massive video files can RAID together multiple NVMe devices for massive I/O bandwidth and seamless playback in their editing bays. All these three M.2 rest under dedicated heatsinks to prevent SSD throttling under heavy loads and comes with ASUS Q-Latch.

Massive VRM Heatsinks

Since mass and airflow are critically important; our VRM heatsinks are manufactured with tall and densely packed fins; and are placed on the MOSFETs and chokes to enhance thermal efficiency. Additional fan bracket allows users to install up to three high-speed fans; drawing heat away from VRM areas to fully unleash the performance of the latest Intel processors.

Pre-mounted I/O shield

The patented I/O shield is finished in sleek matte black and comes pre-mounted for easy installation on the motherboard and is designed to allow air flow to keep the heat away from the board.

Product Features:

• Intel LGA 4677 socket - Ready for Intel Xeon W-3400 & W-2400 processors
• CPU and memory overclocking - Supports for up to 2TB of ECC R-DIMM DDR5 memory (1DPC)
• Ultrafast connectivity - 7 PCIe 5.0 x16 slots; Dual Intel X710-AT2 10G LAN; 3 M.2; USB 3.2 Gen 2x2 Type-C and 2 SlimSAS
• Server-grade IPMI remote management - Hardware and software-level with a dedicated LAN port link to AST2600 BMC controller; plus a real-time monitoring and management software - ASUS Control Center Express
• Robust power and thermal design - 14+1+1 power stages; 8-pin and 6-pin PCIe power connectors; Massive VRM; chipset; M.2 heatsinks and M.2 backplates
• Trusted stability - Highly compatible with the latest technologies with solid QVL list and tested for 24/7 operation; validated for extensive compatibility

Specifications:

• CPU:
• Intel Socket LGA4677 for Xeon W-3400 and W-2400 Series Processors
• Supports Intel Turbo Boost Max Technology 3.0
• Chipset: Intel W790 Chipset
• Memory:
• 8 x DIMM slots; Max. 2048GB; DDR5 6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800 ECC Registered Memory
• 8-Channel Memory Architecture
• Supports Intel Extreme Memory Profile (XMP)
• Supported memory types; data rate (speed); and number of DRAM modules vary depending on the CPU and memory configuration; for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
• Graphics: 1 x VGA port from AST2600
• Expansion Slots:
• Intel Xeon W-3400 Series Processors
• 7 x PCIe 5.0 slot(s) (Seven at x16/x16/x16/x16/x16/x8/x16)
• Intel Xeon W-2400 Series Processors
• 4 x PCIe 5.0 slot(s) (Four at x16/x16/x16/x16)
• Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)
• Please refer to the block diagrams in the Appendix for more details
• To ensure compatibility of the device installed; please refer to https://www.asus.com/support/ for the list of supported peripherals
• Storage:
• Total supports 3 x M.2 slots; 2 x SlimSAS slots and 8 x SATA 6Gb/s ports
• Intel Xeon W-3400 Series Processors
• M.2_1 slot (Key M); type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M); type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
• Intel W790 Chipet
• M.2_3 slot (Key M); type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• SlimSAS_1 port supports PCIe 4.0 x4 mode NVMe device
• SlimSAS_2 port supports PCIe 4.0 x4 mode NVMe device
• 8 x SATA 6Gb/s ports
• Supports Intel Virtual RAID on CPU (Intel VROC) and Intel Volume Management Device (Intel VMD)
• Intel VROC Technology supports PCIe RAID 0/1/5/10; SATA RAID 0/1/5/10. VROC_HW_Key is purchased separately
• M.2_1 and M.2_2 slots will be disabled once an Intel Xeon W-2400 Series Processor is installed
• Ethernet:
• 1 x Intel dual 10Gb Ethernet
• 1 x Realtek 1Gb Ethernet
• ASUS LANGuard
• USB:
• Rear USB (Total 8 ports)
• 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
• 5 x USB 3.2 Gen 2 port(s) (4 x Type-A + 1 x USB Type-C)
• 2 x USB 2.0 port(s) (2 x Type-A)
• Front USB (Total 7 ports)
• 1 x USB 3.2 Gen 2 connector (supports USB Type-C)
• 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
• Audio:
• Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
• Impedance sense for front and rear headphone outputs
• Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
• Supports: Jack-detection; Multi-streaming; Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
• Supports up to 32-Bit/192 kHz playback
• Audio Features
• Power pre-regulator reduces power input noise to ensure consistent performance
• Rear optical S/PDIF out port
• Premium audio capacitors
• Dedicated audio PCB layers
• Unique de-pop circuit
• Due to limitations in HDA bandwidth; 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio
• Back Panel I/O Ports:
• 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
• 5 x USB 3.2 Gen 2 port(s) (4 x Type-A + 1 x USB Type-C)
• 2 x USB 2.0 port(s) (2 x Type-A)
• 1 x VGA port
• 2 x Intel dual 10Gb Ethernet ports
• 1 x Realtek 1Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack button
• 1 x Clear CMOS button
• Internal I/O Connectors:
• Fan and Cooling related
• 1 x 4-pin CPU Fan header(s)
• 1 x 4-pin CPU OPT Fan header(s)
• 5 x 4-pin Chassis Fan header(s)
• 1 x W_PUMP+ header(s)
• Power related
• 2 x 24-pin Main Power connector
• 4 x 8-pin +12V Power connector
• 1 x 8-pin PCIe Power connector
• 1 x 6-pin PCIe Power connector
• Storage related
• 3 x M.2 slots (Key M)
• 2 x SlimSAS connector(s)
• 8 x SATA 6Gb/s ports
• 1 x VROC Key connector
• USB
• 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C)
• 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
• Miscellaneous
• 1 x COM Port header
• 1 x FlexKey button
• 1 x Front Panel Audio header (AAFP)
• 1 x LN2 Mode jumper
• 1 x M.2 slot (Key E)
• 1 x Retry button
• 1 x Safe Boot button
• 1 x SPI TPM header (14-1pin)
• 1 x Start button
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thermal Sensor header
• BMC Related
• 1 x BMC switch
• 1 x VGA switch
• 1 x BMC LAN fixed IP switch
• 1 x IPMI switch
• 2 x Q_PSU switch
• 2 x PSU SMBus header
• 1 x Front panel location LED header
• 1 x Location button header
• 1 x VPP_I2C header
• 1 x Micro SD card socket
• 1 x BMC_T_SENSOR header
• 1 x BMC LED
• 1 x Location LED
• 1 x Message LED header
• Special Features:
• Extreme OC Kit
• FlexKey button
• LN2 Mode
• Retry button
• Safe boot button
• Start button
• Extreme Engine Digi+
• 10K Black Metallic Capacitors
• MicroFine Alloy Choke
• ASUS 5X Protection III
• DIGI+ VRM (- Digital power design with DrMOS)
• ESD Guards
• LANGuard
• Overvoltage Protection
• Safeslot
• Stainless-Steel Back I/O
• ASUS Q-Design
• M.2 Q-Latch
• Q-Code
• Q-Connector
• Q-DIMM
• Q-LED (CPU [red]; DRAM [yellow]; VGA [white]; Boot Device [yellow green])
• Q-Slot
• ASUS Thermal Solution
• M.2 heatsink backplate
• M.2 heatsink
• Steel backplate
• VRM heatsink design
• ASUS EZ DIY
• BIOS FlashBack button
• BIOS FlashBack LED
• Caterr1 LED
• Box Headers
• Clear CMOS button
• ProCool II
• Pre-mounted I/O shield
• SafeSlot
• SafeDIMM
• Bespoke Motherboard Design & Business Focused Features
• 24/7 Reliability
• Overcurrent Protection
• Software Features:
• ASUS Exclusive Software
• Armoury Crate: Fan Expert 4
• AI Suite 3
• TPU
• DIGI+ VRM
• Turbo app
• PC Cleaner
• ASUS CPU-Z
• IT Management software supported
• ASUS Control Center Express(ACCE)
• Adobe Creative Cloud (Free Trial)
• Norton 360 Deluxe (60 Days Free Trial)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUSTeK. EzFlash Utility
• FlexKey
• BIOS: 512 Mb Flash ROM; UEFI AMI BIOS
• Manageability: WOL by PME; PXE (UEFI mode)
• Operating System: Windows 11; Windows 10 64-bit
• Form Factor:
• EEB Form Factor
• 12 inch x 13 inch (30.5 cm x 33 cm)
