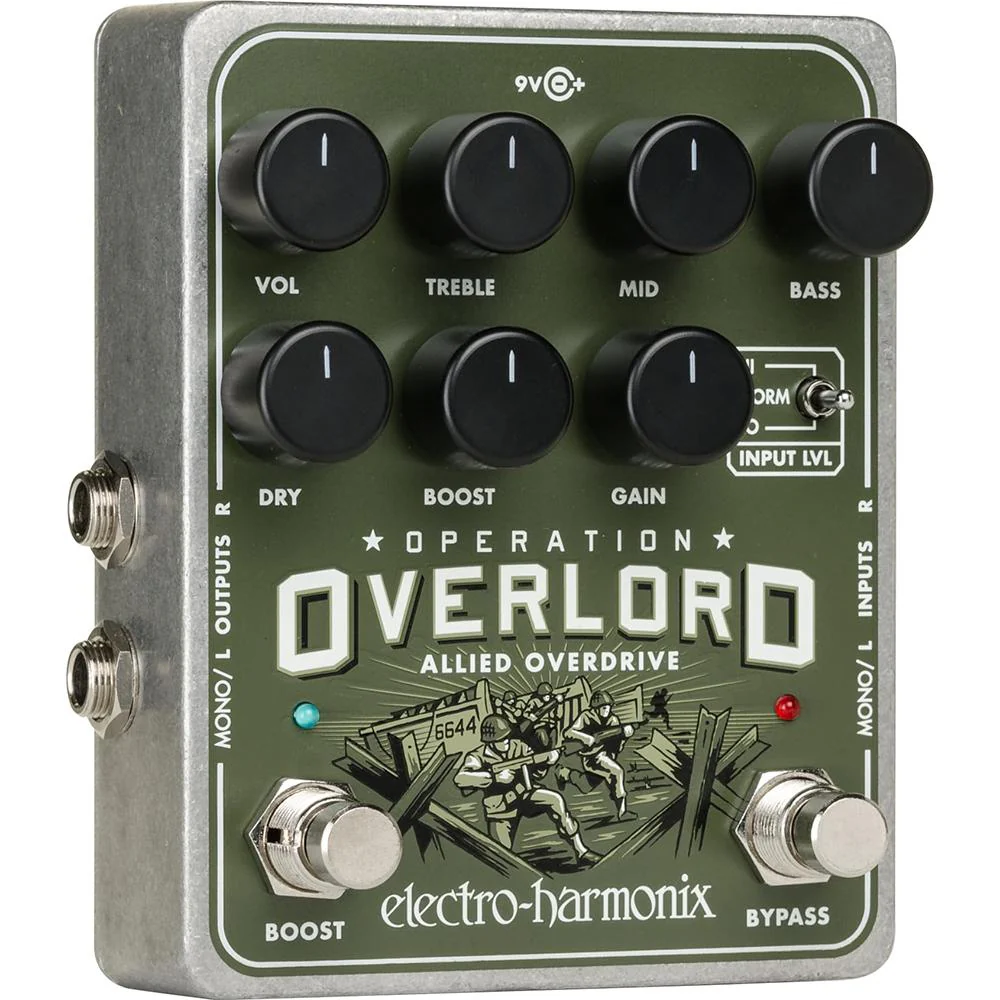

Electro-Harmonix Operation Overlord Allied Overdrive Pedal

Electro-Harmonix Operation Overlord Allied Overdrive Pedal

Versatile, multi-instrument capable, stereo overdrive/distortion with a broad range of sound options and controls!

With the EHX Operation Overlord Allied Overdrive, whether you play guitar, bass, keyboards or pretty much any electronic instrument - dialing in great drive sounds is fast and foolproof.

Active 3-band EQ controls, footswitchable BOOST mode, and a dry blend provide versatility for different tones and instruments. The OVERLORD also features two independent distortion channels for use with stereo setups.

Whatever your rig, the Overlord is your indispensable ally.

Product Highlights:

Silent foot-switchable Normal and Boost modes deliver distortion ranging from mild to saturated

Normal mode uses three JFET gain stages for tube amp-style response and tone

Boost mode adds a classic pedal-type overdrive circuit before the JFET stages

Three-position switch lets the user select the proper input level for their instrument. It’s great with guitar, bass, keyboards...

Active Treble, Mid and Bass controls, plus a Dry blend, for total tone shaping

Fully stereo capable, equipped with left and right 1/4” input and output jacks

Power supply included

Product Features:

VOL Knob: This knob contains the overall volume output.

TREBLE Knob: Active control of the level of the treble frequency range.

MID Knob: Active control of the level of the middle frequency range.

BASS Knob: Active control of the level of the bass frequency range.

DRY Knob: Mixes a clean unaltered signal with the distortion produced by the OVERLORD.

BOOST Knob: Controls the amount of extra gain fed into the main circuit when the BOOST and NORMAL modes are engaged (both LEDs lit).

GAIN Knob: Controls the amount of overdrive/distortion.

Input LVL Switch: Controls the overall input level of your instrument.

Boost Footswitch and Blue LED: Toggles Boost mode on and off. When in Boost mode, the blue LED will be lit.

Bypass Footswitch and Red LED: This footswitch selects whether the effect is engaged or in bypass mode. When the effect is engaged, the red LED will be lit.

L/R Output Jacks: These 1/4" jacks are the audio output from the OVERLORD.

L/R Input Jacks: These 1/4" jacks are the audio inputs. The OVERLORD can be used with either mono or stereo inputs.

Product Specifications:

Circuit: Analog

Bypass: Buffered Bypass

Audio: Mono

Power Supply: 9.6VDC-200mA power adapter included

Dimensions (in): 4.75 x 4.13 x 2.25

Current Draw: 90mA

Year Released: 2017

UPC: 683274011875
