Extech FLIR 382252 Earth Ground Resistance Tester Kit

FLIR Extech 382252: Earth Ground Resistance Tester Kit

The 382252 is an Earth Ground Resistance Tester Kit which includes all hardware necessary to measure earth ground in 3 ranges from 20 to 2000 Ohms. Also tests AC/DC Voltage, resistance and continuity. Featuring Automatic zero adjustment and three earth ground resistance ranges 20Ω/200Ω/2000Ω. Complete with test leads, 2 auxiliary earth bars, carrying case, protective rubber holster and six 1.5V AA batteries.

Product Features:

Easy Operation

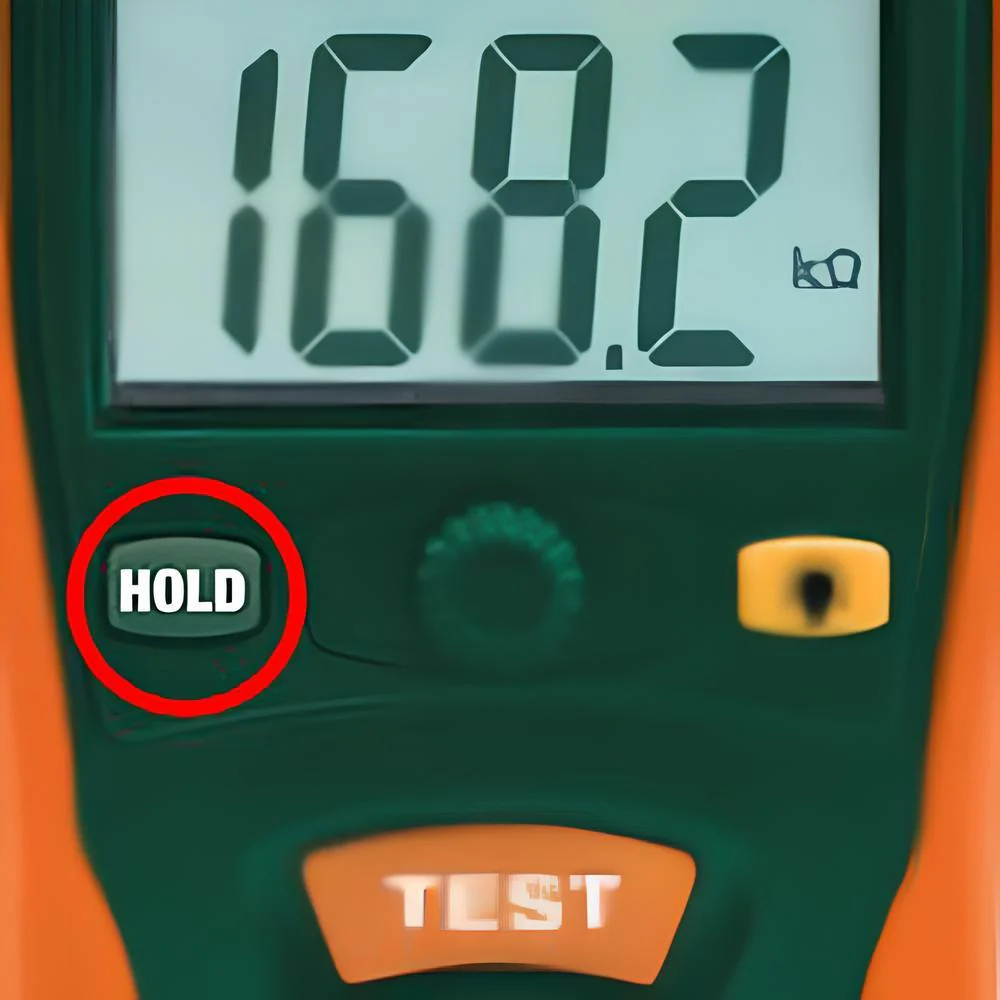

Large dual display with backlight with Test Hold function for easy operation

Automatic Zero Adjustment

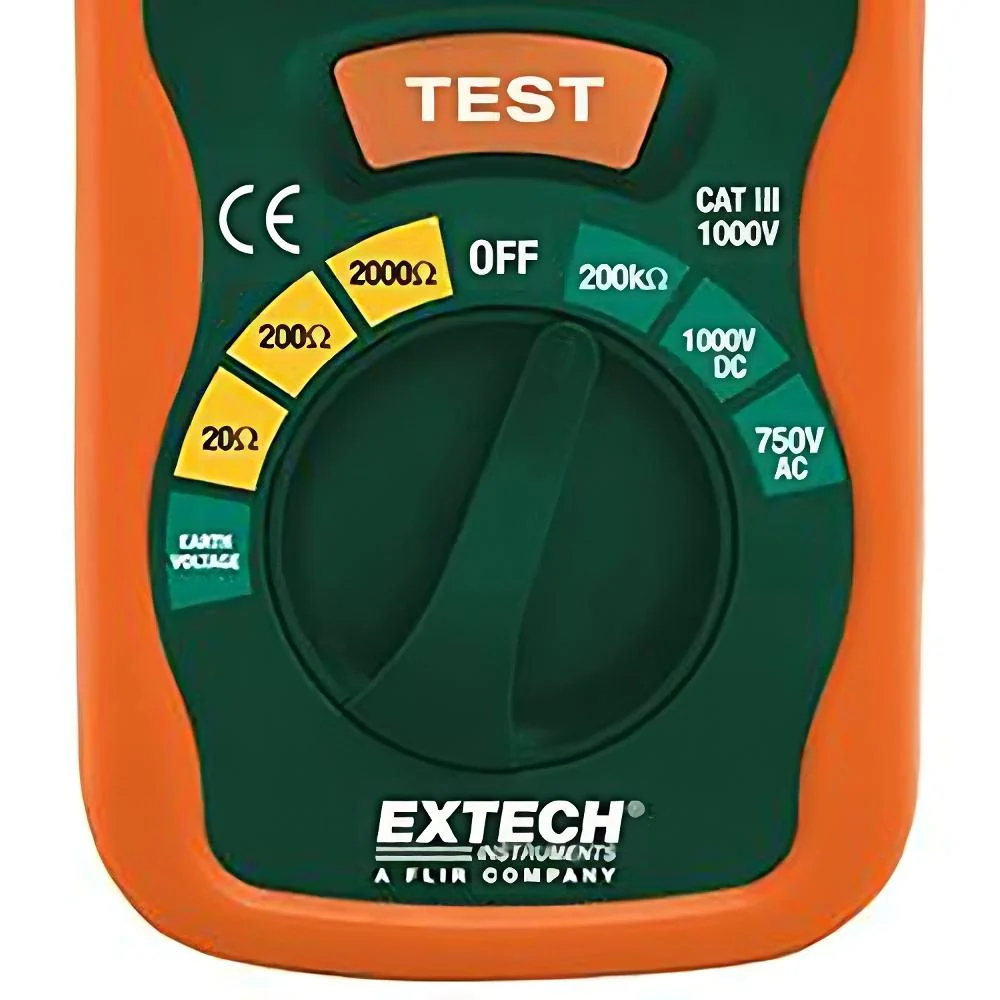

Automatic zero adjustment and three earth ground resistance ranges 20Ω/200Ω/2000Ω

Additional Features

Auto Power off, Overrange and low battery indication

Product Specifications:

General

AC Voltage: 0 to 750V

AC Voltage Basic Accuracy: 1V

Continuity: 40Ω

DC Voltage: 0 to 1000V

DC Voltage Basic Accuracy: ±(0.8% of reading + 3 digits)

Earth Ground Resistance: 20Ω/200Ω/2000Ω

Earth Ground Resistance Basic Accuracy: ±(2% of reading + 2 digits)

Earth Ground Resistance Max Resolution: 0.01Ω/0.1Ω/1Ω

Earth Voltage: 0 to 200VAC (50 to 400Hz frequency)

Earth Voltage Basic Accuracy: ±(3% of reading + 3 digits)

Earth Voltage Max Resolution: 0.1V

Resistance: 0 to 200kΩ

Test Current: <2.5mA

Test Frequency: 820Hz

Additional Details

Certifications: CE

Dimensions: 7.9 × 3.6 × 2" (200 × 92 × 50mm)

Power: 6 × AA (1.5V) batteries

Safety Category: CAT III-1000V

Warranty: 2 years

Weight: 1.5lbs (700g)
