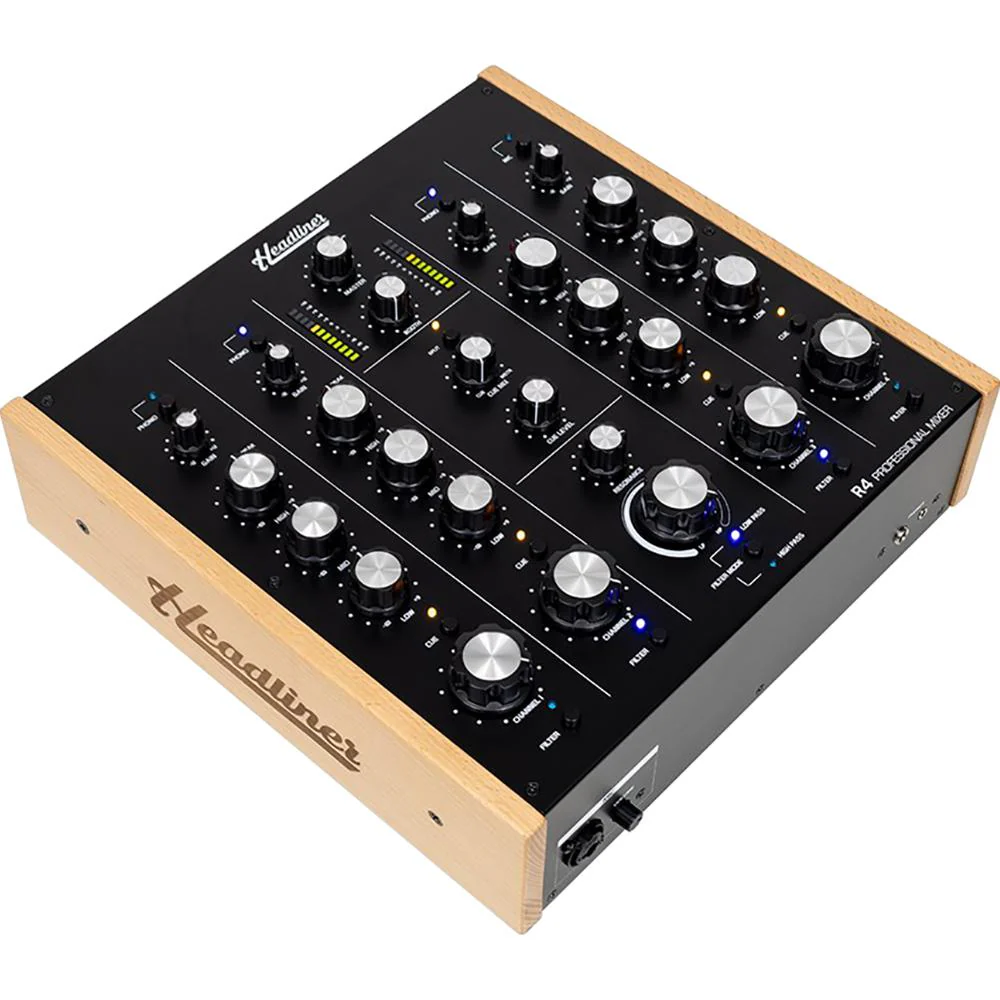

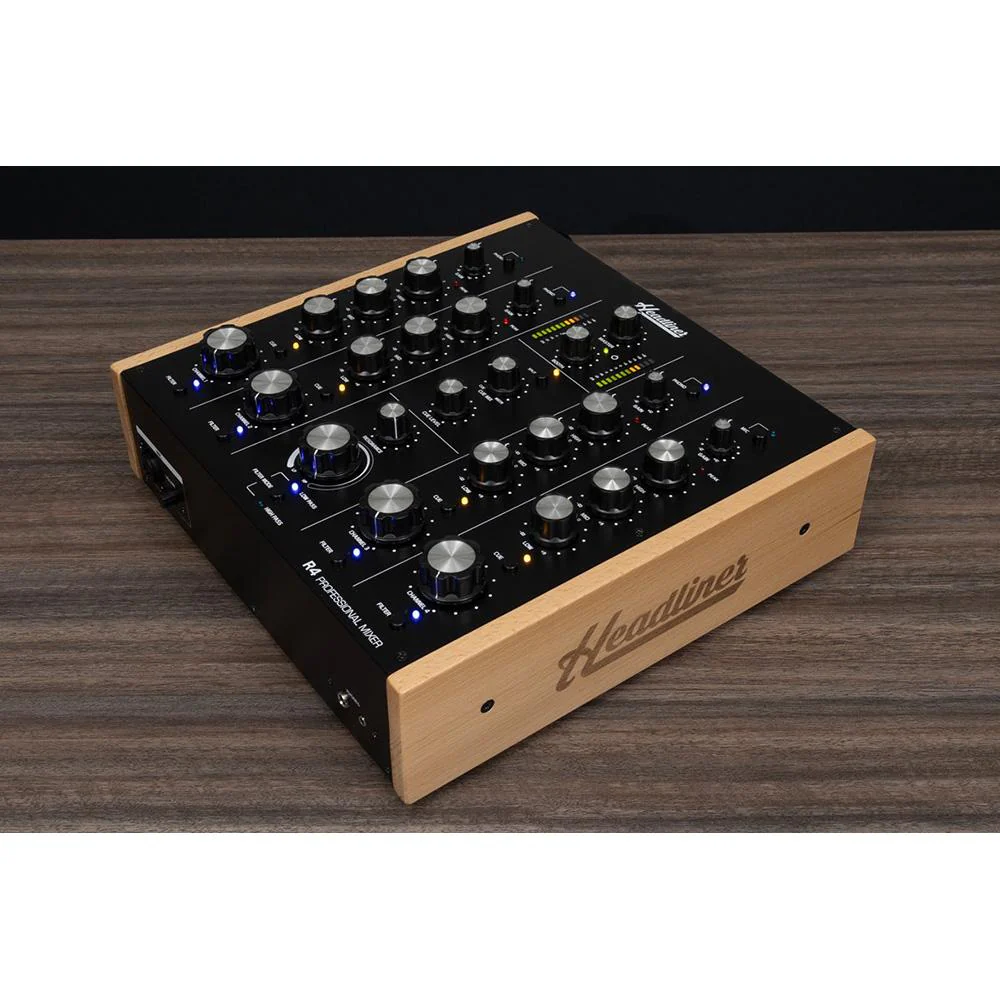

Headliner R4 4-Channel Rotary DJ Mixer (HL90120)

Headliner R4 4-Channel Analog Rotary DJ Mixer

Introducing the Headliner R4, a 4-channel analog rotary mixer designed to elevate your DJ experience. Continuing the tradition of precision, warmth, and affordability, the R4 is packed with enhanced features and top-notch components, including genuine ALPS potentiometers, ensuring an unparalleled mixing experience.

Crafted with four Line inputs, three Phono inputs, and one Mic input on four stereo channels. Each channel boasts essential features like gain control with peak LED, a 3-band isolator EQ, headphone cue selector, generous channel volume knob, and a filter activation switch, granting DJs precise control over their sound.

At the heart of the R4 lies the Master channel, equipped with an analog filter, headphone monitoring, and a comprehensive output control section.

Seamlessly toggle between High Pass / Low Pass Filter modes with Frequency and Resonance controls to shape your signature sound.

Empowering DJs with absolute control, the headphone Cue control section offers headphone volume control, headphones mix control (Cue/Master), and a split monitor switch for smooth transitions between outputs.

Product Highlights:

4 Channel analog rotary DJ mixer with built-in Filter

Analog High Pass / Low Pass filter with frequency and resonance controls to shape your signature sound

Four stereo channels featuring gain control with peak LED, 3-band isolator EQs, headphone cue selector, generous channel volume knob, and a filter activation switch, granting you precise control over your sound

Four line inputs, three phono inputs, and two mic inputs connecting a wide variety of devices including turntables, media players, and microphones

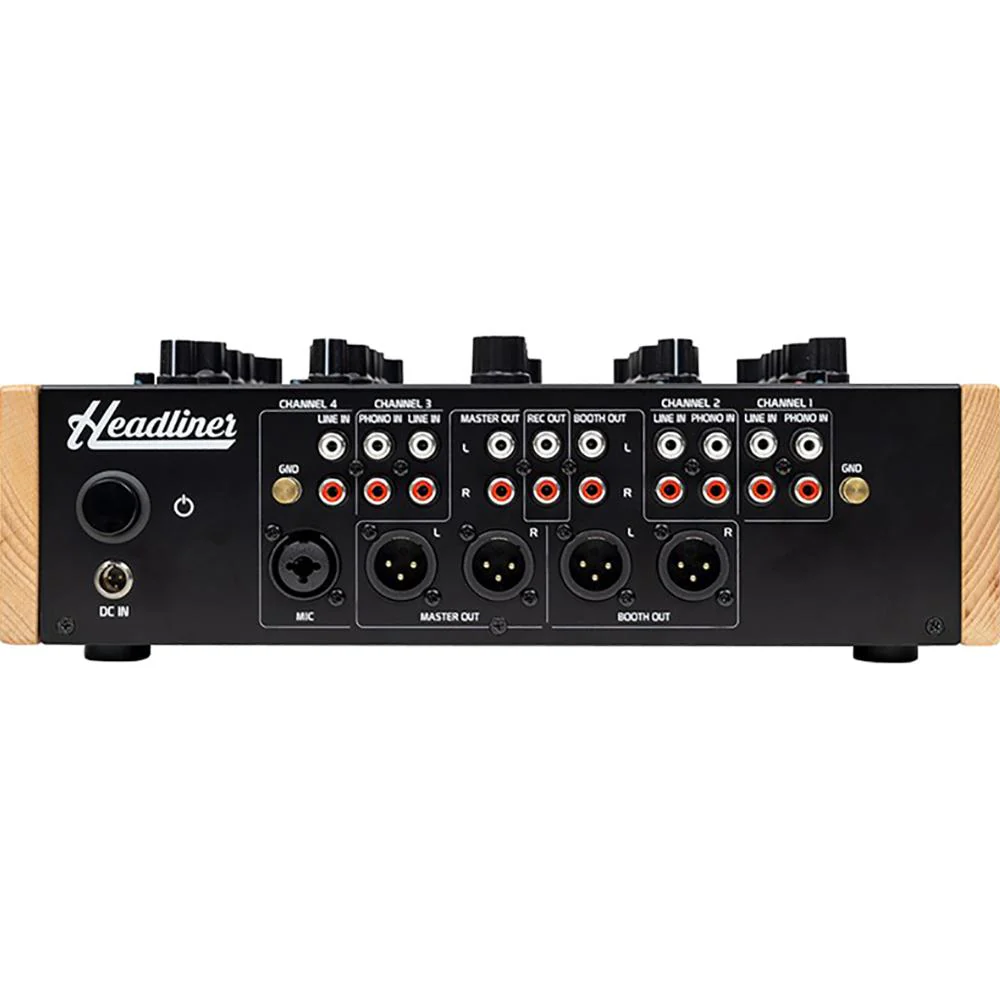

Independent Master and Booth outputs equipped with volume controls, balanced XLR and unbalanced RCA connectors, ensures seamless connectivity across various sound systems

Product Features:

Three stereo channels with selectable Line and Phono RCA inputs and one channel with selectable stereo Line and mono Microphone

Each channel features Gain control with Peak LED, 3-Band Isolator EQ, Headphones Cue selector with LED, channel volume control and filter activation switch with LED

Master channel features analog filter, headphone monitoring and output control section

Analog filter features selectable High Pass / Low Pass Filter modes with Frequency and Resonance controls

Genuine ALPS potentiometers

Headphone Cue control section features headphones volume control, headphones mix control (Cue/Master), and split monitor switch

High current headphone amplifier with dual 1/4" and 1/8" jacks

Independent Master and Booth outputs with volume controls, balanced XLR outputs and unbalanced RCA outputs

Additional Record output with unbalanced RCA jacks

Dual LED level meters for the Master output

Microphone input with level control on front panel

Sturdy metal enclosure with stained wood side panels for a classic look

Modular internal construction for superior audio performance

External split rail power supply connected via locking Mini XLR connector

Push-button power switch on rear panel

Product Specifications:

Microphone Inputs

Nominal Input Level: -50dBu

Frequency Response: 20Hz - 20kHz (+/- 0.1dB)

THD + N: < 0.1%

Input Impedance: 1.2 kOhm

Line Inputs

Nominal Input Level: -10dBV (-7.8dBu)

Gain Range: -12dB to +12dB

Frequency Response: 20Hz - 20kHz (+0/- 0.5dB)

THD + N: < 0.05%

Input Impedance: 10 kOhm

Phono Inputs

Nominal Input Level: -40dBu (@1kHz)

Gain Range: -12dB to +12dB

Active RIAA equalization

THD + N: < 0.05%

Input Impedance: 47 kOhm

Input Capacitance: 100pF

Single stage Phono Preamp

Ceramic capacitors

Main Outputs

Nominal Output Levels, balanced: +4dBu

Maximum Output Level, balanced: +20dBu

Nominal Output Levels, unbalanced: -10dBV (-7.8dBu)

Maximum Output Level, unbalanced: +12dBu

Frequency Response: 20Hz-20kHz (+0/-1.5dB)

Residual Noise: <-86dBu (Line to Master)(A-Weighted)

Dynamic Range: > 100dB (A-Weighted)

Crosstalk: < -65dB

THD + N: < 0.05%

Headphone Output

Maximum Output Level: 70mA/channel into 150Ω

Minimum Load Impedance: 32 Ohms/channel

Power Supply

Type: External with locking mini-XLR connector

Input Voltage: 100-240v ~ 50/60Hz

Output Voltage: +/-15V; 500mA

General

Measurements: 12.6" x 12.2" x 4.2" (320 x 310 x 106 mm)

Weight: 7.7lbs (3.5Kg)
