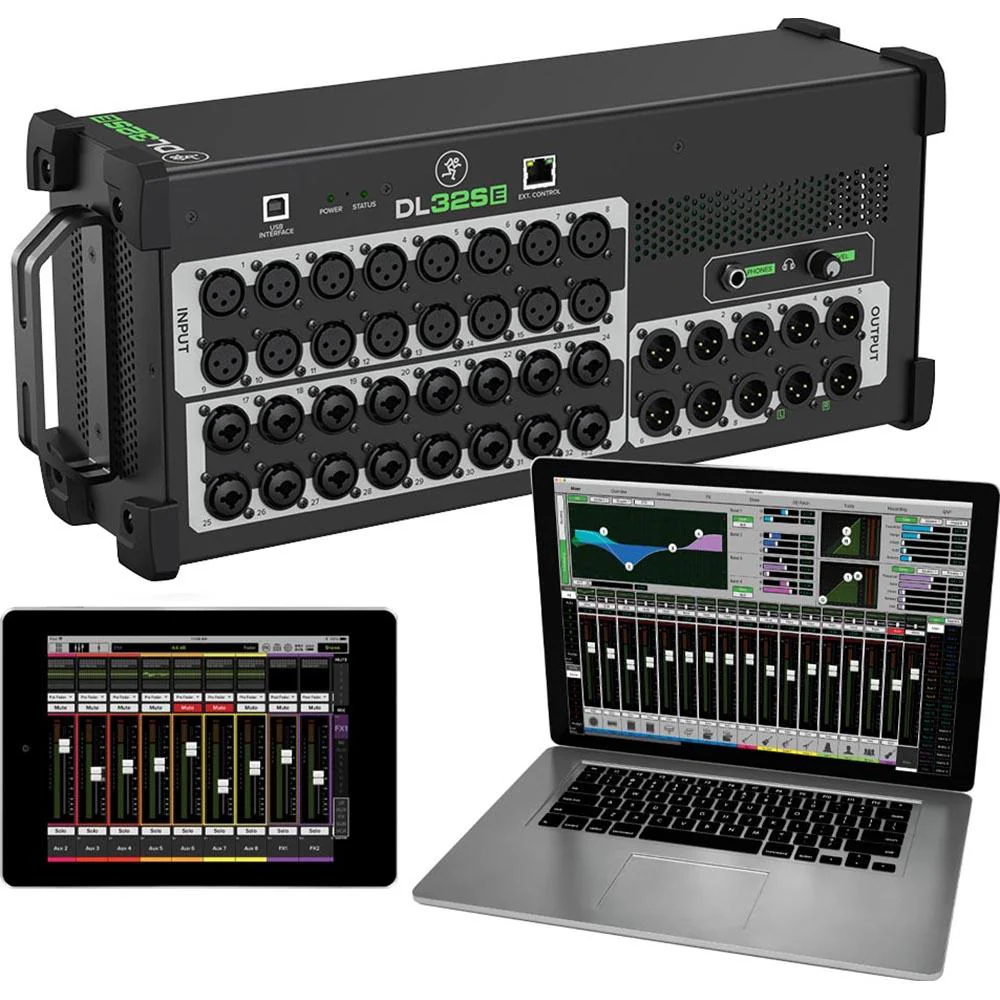

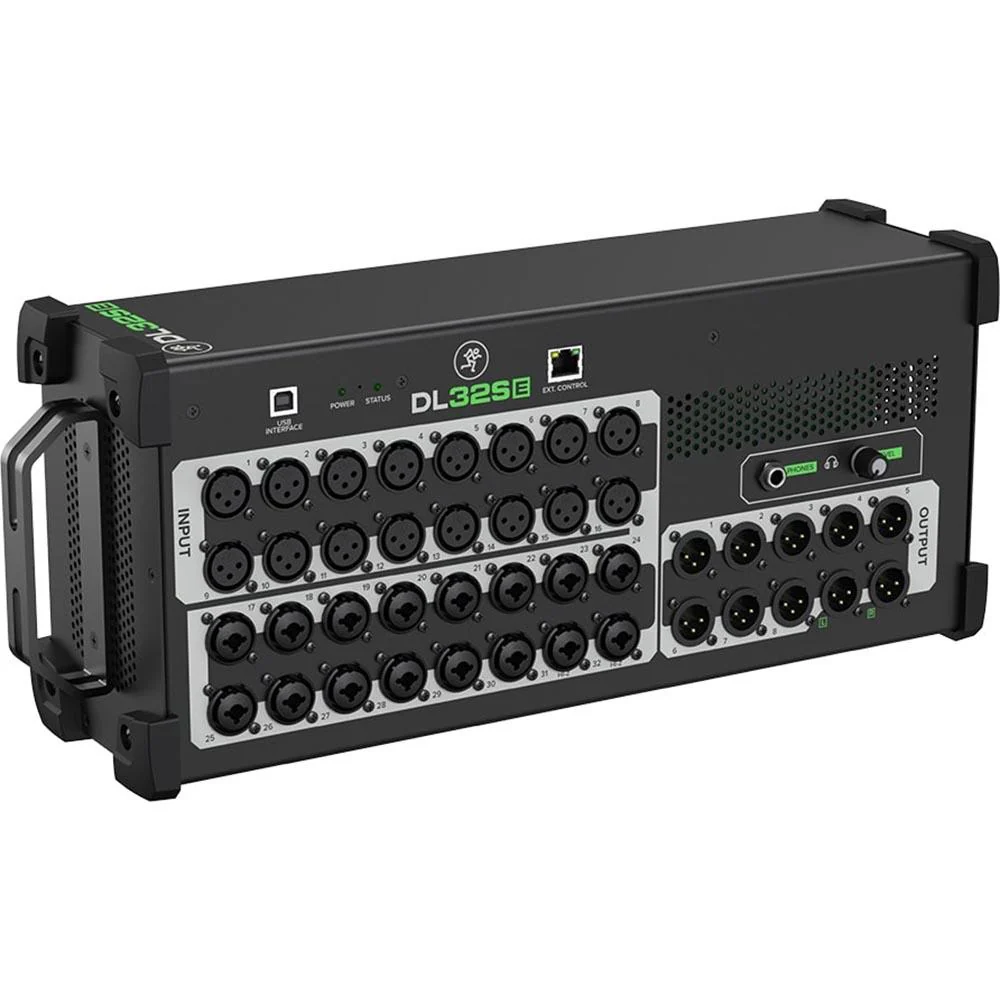

Mackie DL32SE 32-channel Wireless Digital Rack Mixer

Mackie DL-SE Series Digital Rack Mixers

The DL32SE Digital Mixer delivers 32 channels of proven DL series mixing in a stage-friendly, rack-mountable design. Loaded with extensive DSP processing, the DL32SE gives you the mixing power to sound great every night. Create stunning multitrack recordings via the 32×32 USB audio interface and play them back for an effortless virtual sound check. The Master Fader SE app allows intuitive control on up to 20 devices simultaneously, including the ability to digitally recall each and every setting for incredibly fast setup.

Product Features:

Main Features

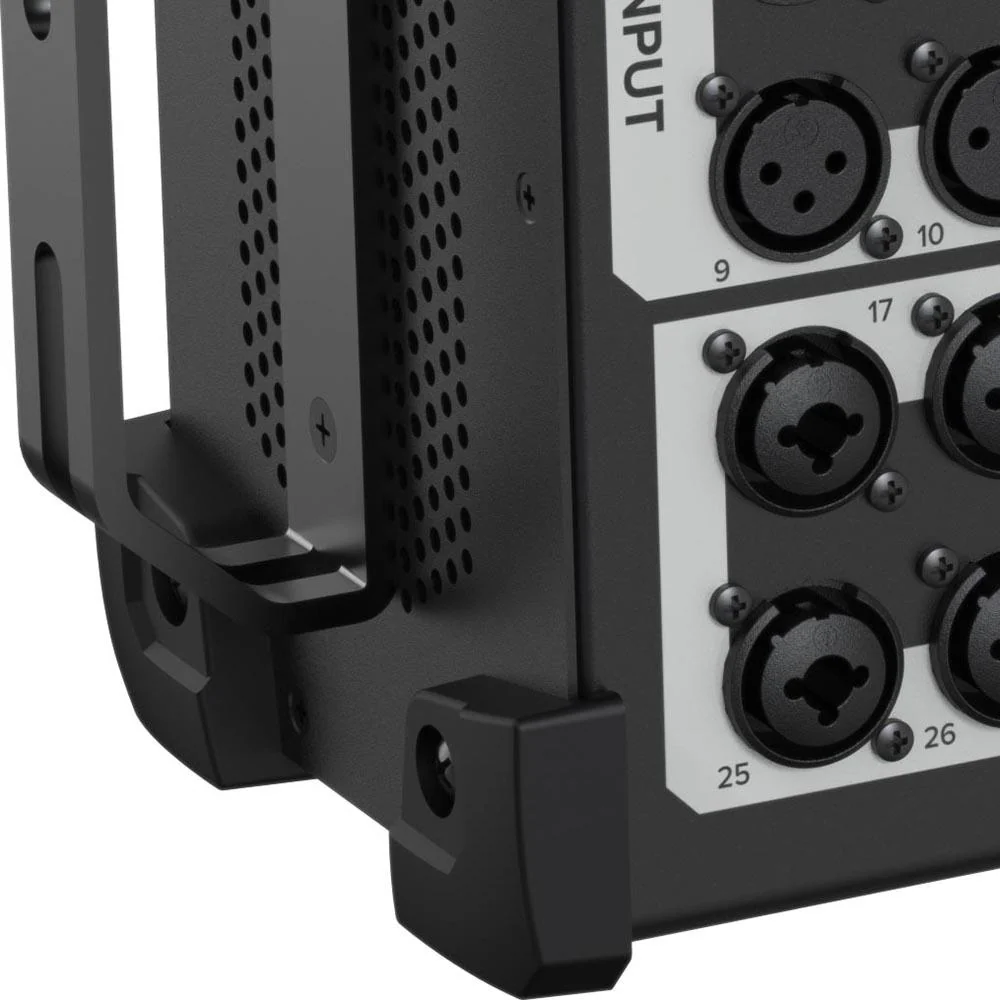

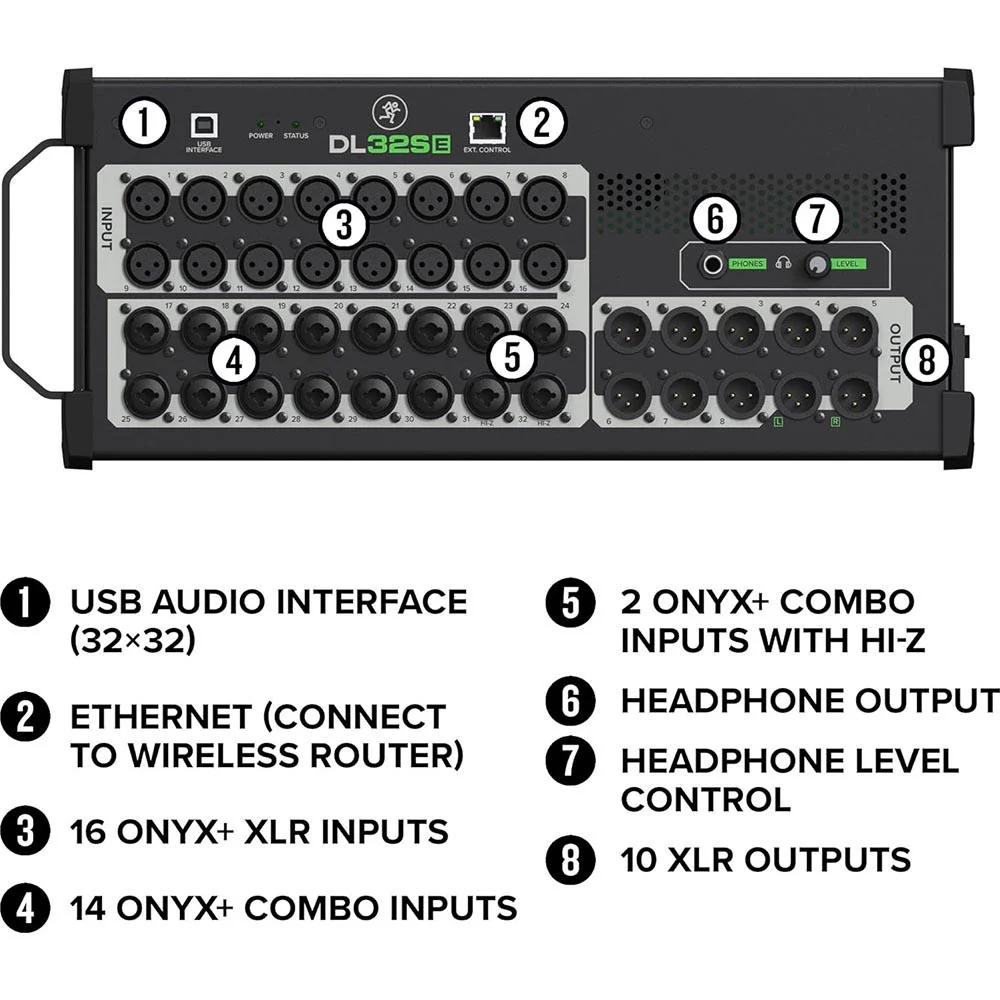

Convenient stagebox/rack design with built-in handle

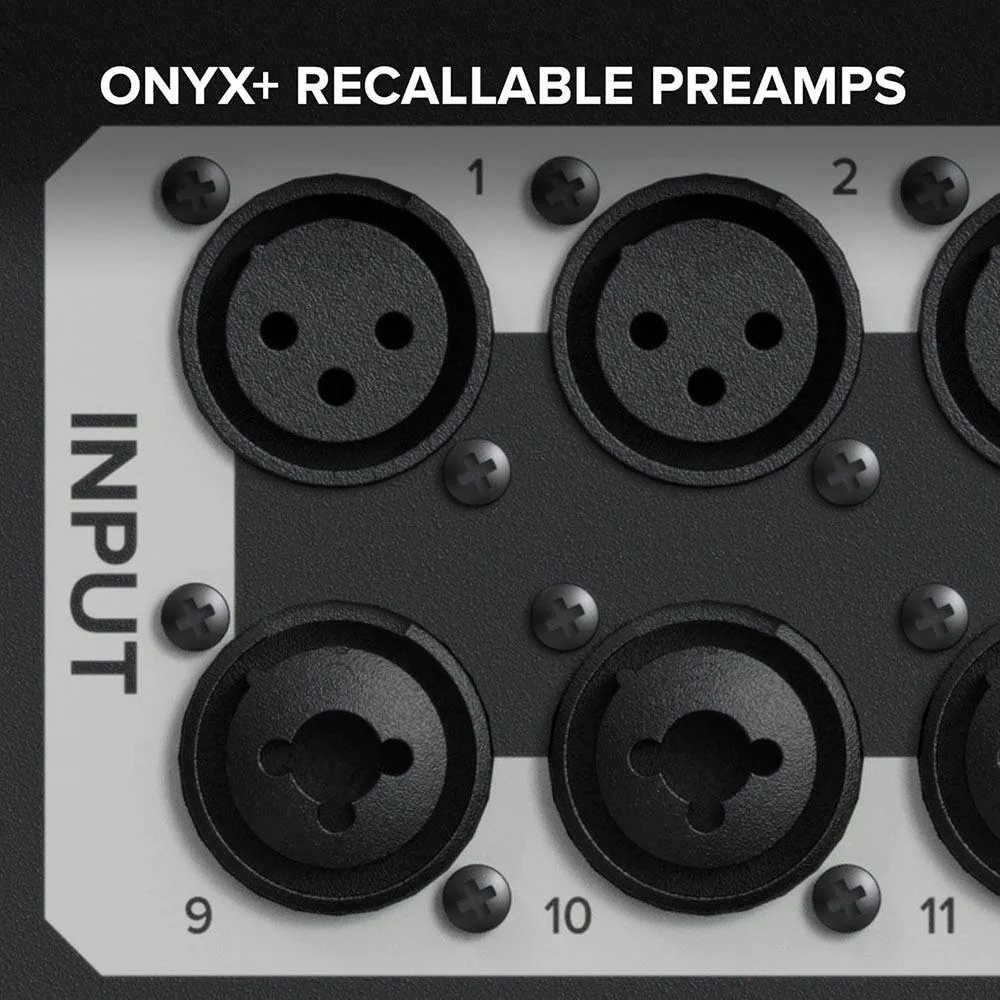

32 Onyx+ preamps (16 XLR, 16 XLR/TRS combo with 2 Hi-Z)

10 fully assignable XLR outputs plus headphone output

Connect to your wireless router and control with Master Fader SE app

Per-channel EQ, filters, gate, compression and RTA/Spectrograph

4 stereo FX busses with studio-quality reverbs, delays, chorus and more

Multitrack 32×32 USB audio interface for recording and playback

Waveform OEM professional software and plugins included

Powerful Processing and Routing

32 stereo-linkable input channels

10 output busses with 4-band PEQ + HPF/LPF, 31-band GEQ, comp/limiter, alignment delay and RTA/Spectrograph

8 stereo-linkable aux sends

6 stereo-linkable subgroups

Main L/R bus

6 VCAs and 6 mute groups

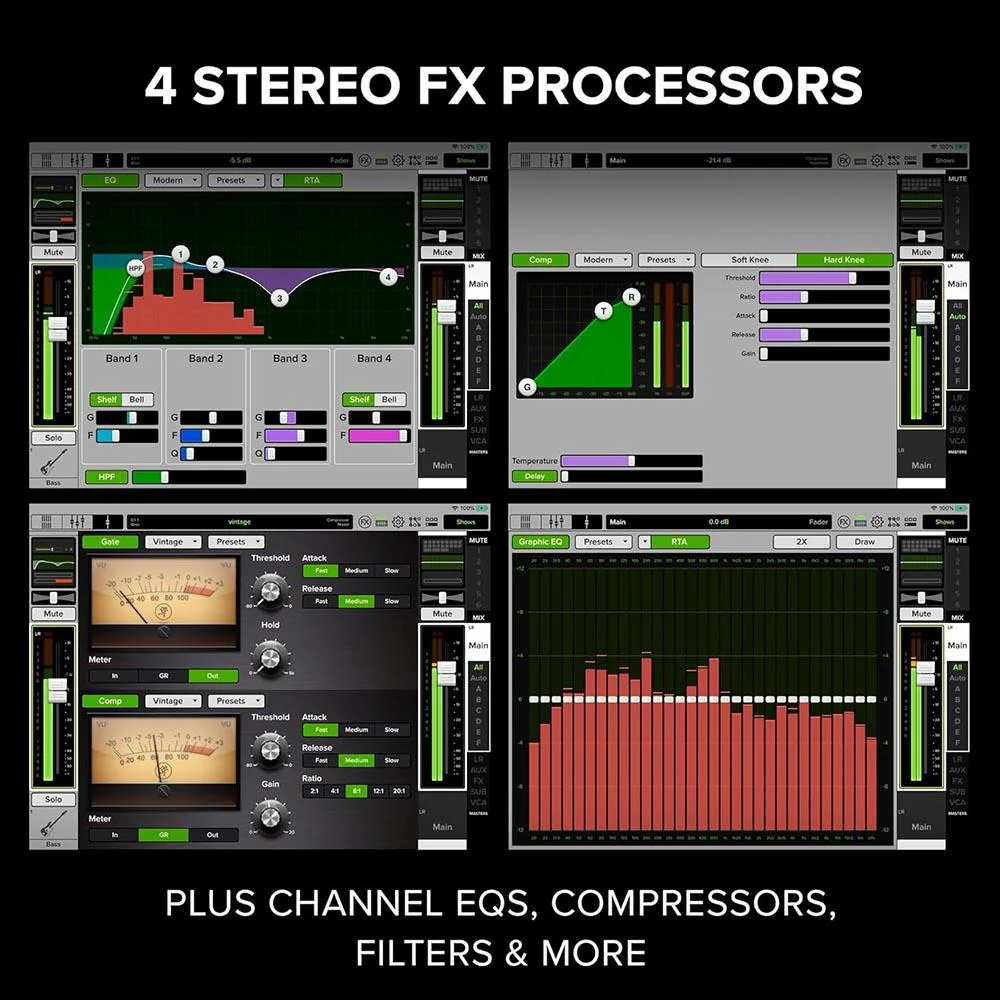

4 stereo FX processors featuring studio-quality reverbs, delays, choruses, flangers, and many more with dedicated sends and returns

Full I/O routing with A/B sources per channel

Assignable oscillator including pink/white noise and sine waves

Modern and Vintage options for comp/gate and EQ

Wireless Mixing

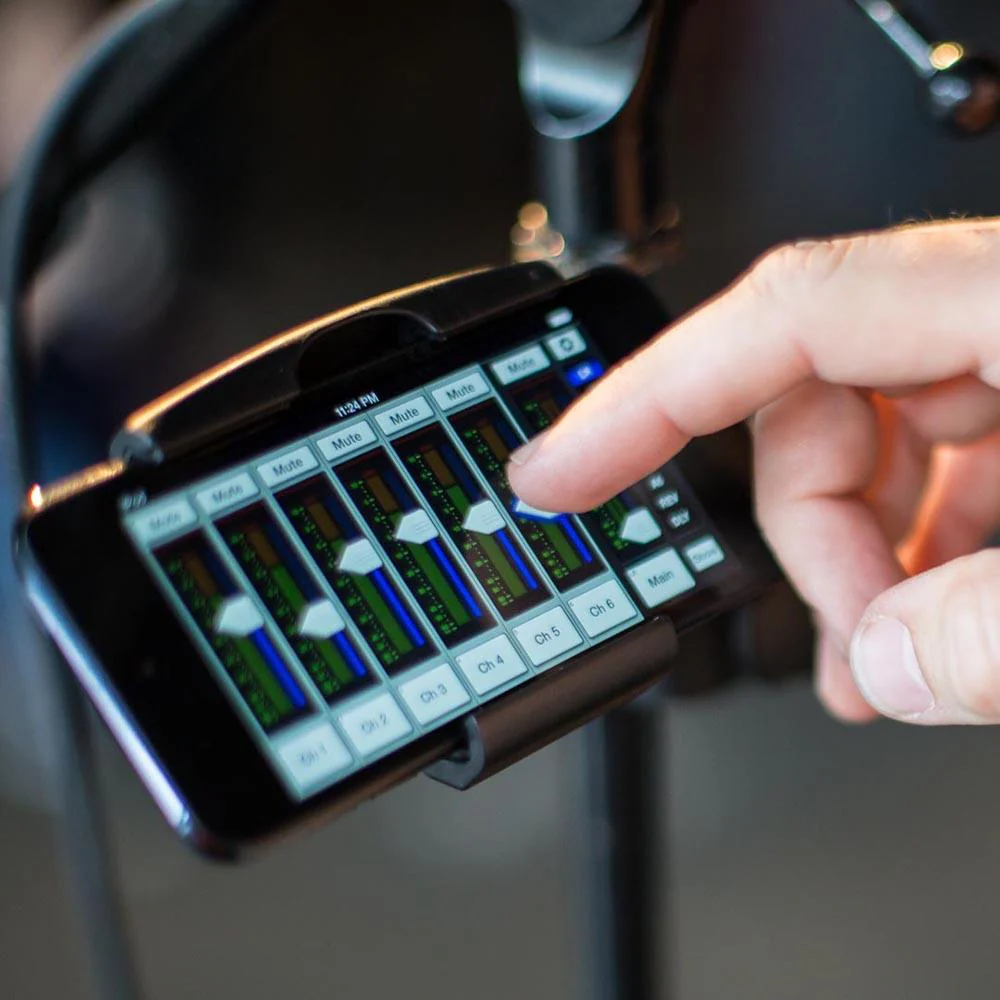

Take complete control via iOS, Android, macOS or Windows devices

No set FOH position - mix from anywhere

Control from up to 20 separate devices at once

Access Limiting allows performers to control their own monitor mixes without giving access to critical mixer functionality

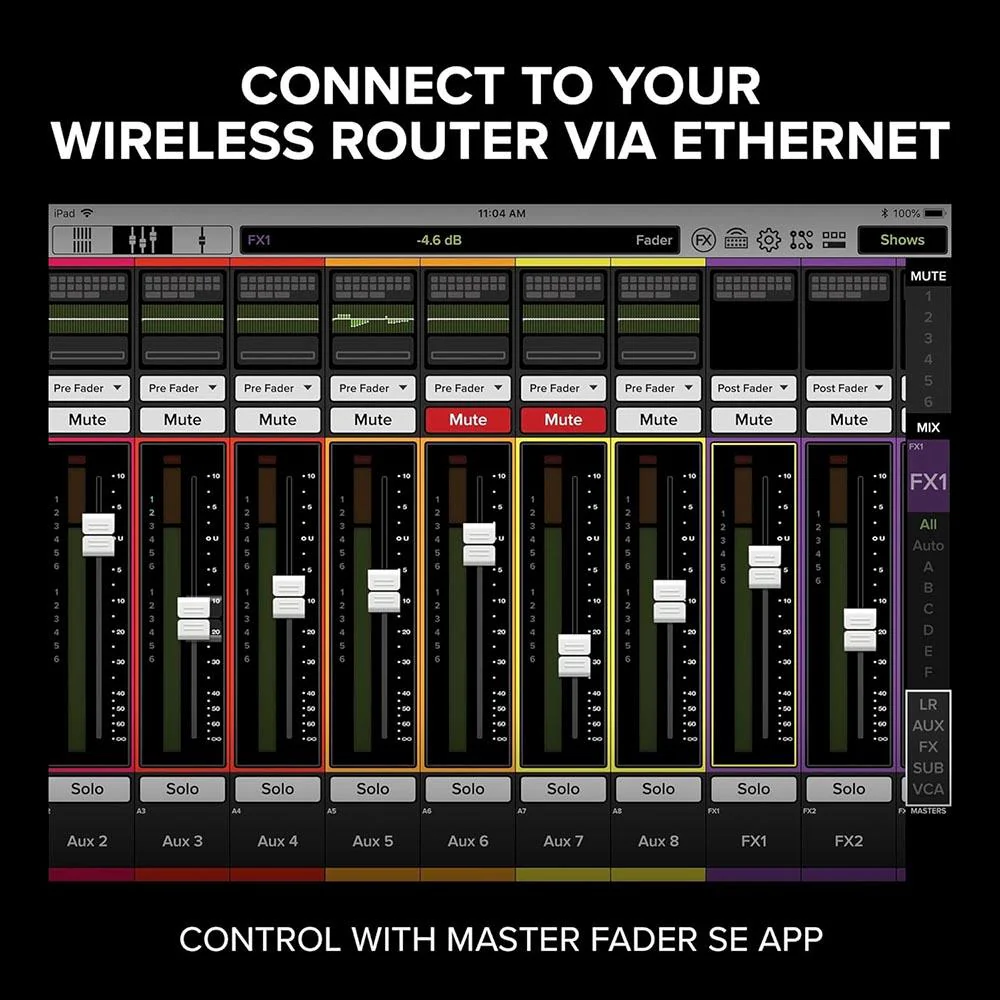

Universal Ethernet connection supports your wireless router of choice

Multitrack Recording and Playback

32×32 USB 2.0 audio interface for Mac or PC

Record the show for later mixdown

Perform a virtual sound check

Play intermission music, backing tracks and more directly into a dedicated stereo return channel

Flexible, low-cost studio recording solution

Utilize Mac or PC audio plug-ins in a live environment

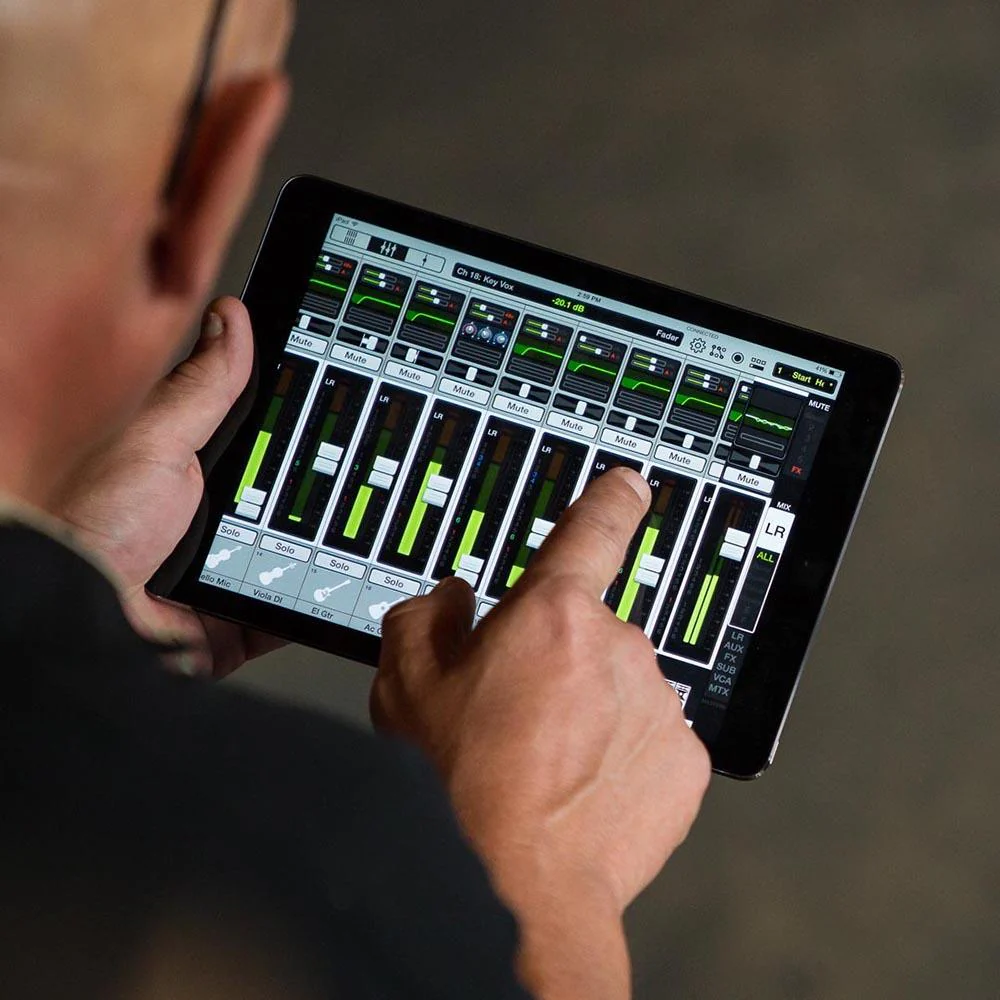

Master Fader SE Control App

Intuitive and easy to master

Fast navigation with view groups and overview

Quick setup with tons of factory and user-definable presets

Access Limiting allows flexible customization of the user interface and prevents unwanted adjustments from other users

Quickly access channel processing, signal routing and a massive suite of great sounding effects with presets to get you started

Export presets, shows and complete system backups via Dropbox, email and more

Set up the show before you arrive at the venue with offline show creation

Available on iOS, Android, macOS and Windows

Product Specifications:

Inputs

Input Channels: 34

Mono Mic/Line: 32

Mic Preamp Type: Recallable Onyx+

Phantom (+48V): Per channel

Low Cut Filter: Variable

Channel EQ: 4-band PEQ + HPF

Channel Inserts: Gate + comp built-in

Outputs

Aux Sends: 8

Subgroups & VCAs: 6 subs + 6 VCAs

Main Outputs: XLR

Main Meters: Hi-resolution via control device

Main EQ: 31-band GEQ, 4-band PEQ + HPF/LPF

Other

Level Control: Virtual faders via control device

Internal FX: 4 x FX processors with massive library of reverbs, delays, choruses, flangers, and more. Alignment delay and RTA on all outputs.

Compressors: All inputs and outputs

Digital Recording: 32x32 USB to Mac/PC

Accessories: Rack ears included

Construction

Power Supply: Internal universal 100-240 VAC

Rackmount: Included, 4U rack spaces

Weight: 8.7 lb / 4.0 kg

Height: 7.3 in / 185 mm

Width: 17.6 in / 447 mm

Depth: 5.8 in / 147 mm
