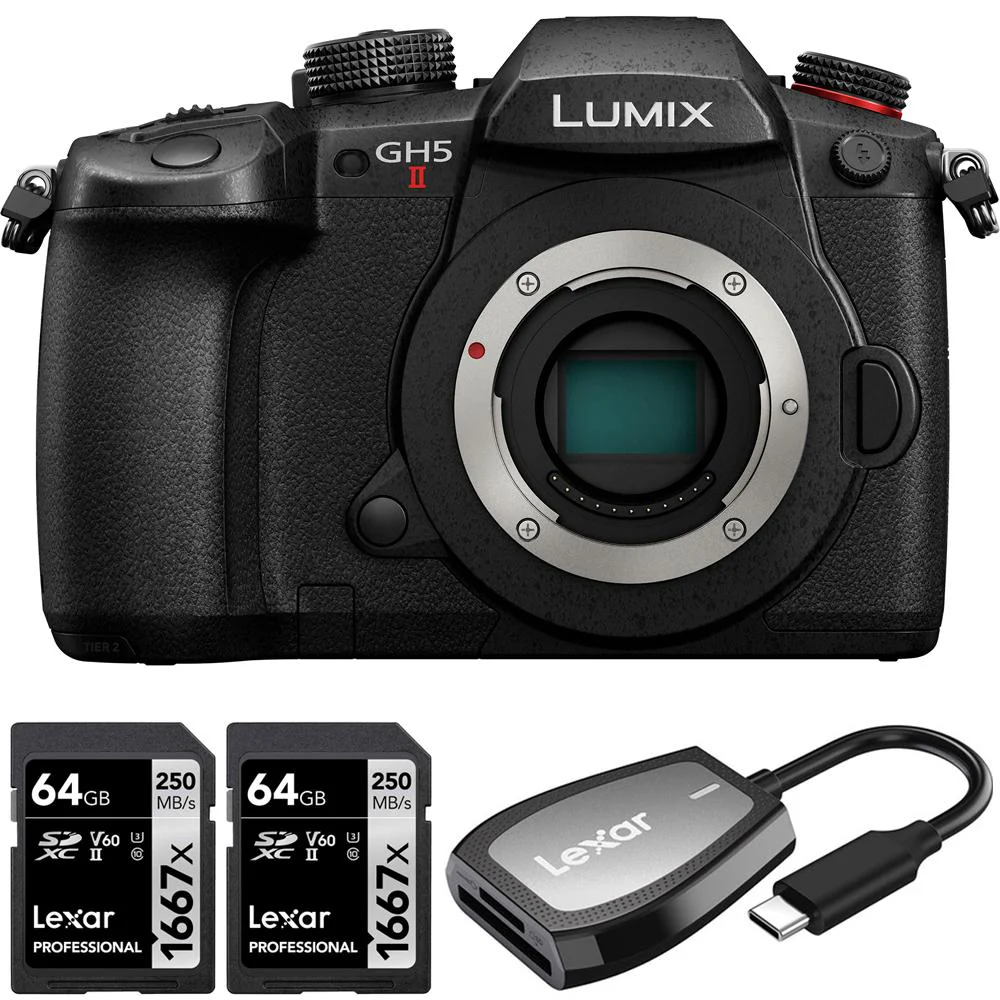

Panasonic LUMIX GH5M2 Mirrorless Camera Body + 2x 64GB Card & Card Reader Bundle
Panasonic LUMIX GH5M2, 20.3MP Mirrorless Micro Four Thirds Camera with Live Streaming, 4K 4:2:2 10-Bit Video, Unlimited Video Recording, 5-Axis Image Stabilizer DC-GH5M2BODY
Panasonic LUMIX GH5M2
Free Your Creativity. Go Live.
Hybrid mirrorless camera featuring live streaming capability and C4K 60p/50p 10-bit video recording.
Product Features:
Supports Unlimited Live Streaming. Both wired and wireless live streaming, together with a USB Power Delivery feature, makes this an ideal professional camera for content creators and professional photographers
Unlimited Video Recording and Simultaneous Output Over HDMI: Enjoy unlimited recording in all modes, as well as simultaneous HDMI output during 4K 60p internal recording in various video format options, helpful for external monitoring and recording
Take greater control of your editing using V-LogL, Cinelike D2/ V2, MonochromeS and L.ClassicNeo; Various supportive functions for video shooting such as Luminance Spot Meter and Wave Form Monitor.
In-body Image Stabilizer for Stable Handheld Shooting: Dual Image Stabilization allows you to shoot blur-free at up to 6.5-stop slower shutter speeds
Tough enough for heavy field use, the ergonomic body with magnesium alloy full die-cast front / rear frame is splash-, dust-, and freeze-resistant down to -10°C/14°F
The legendary LUMIX GH5 experience, now with livestreaming! The LUMIX GH5M2 draws from the GH5, an iconic camera for pro photography and videography, adding features to challenge you to your highest levels of creativity.
The GH5M2 is capable of wireless live streaming using the LUMIX Sync smartphone app supported by USB PD outdoors or indoors. With a future firmware update, it will support wired IP streaming. Video can be delivered either as-is, or as log recording for advanced post-production.
The GH5M2 ensures successful shooting with a 20.3MP sensor with AR coating, the latest autofocus, and I.S. technologies with the latest Venus Engine. It is capable of unlimited video recording in various settings and can record C4K/4K 60p 4:2:0 10-bit without cropping, with simultaneous output over HDMI during internal recording. V-LogL is pre-installed to deliver a high dynamic range and broad colors, which makes you easy to match the color tone with the footage recorded in V-Log and V-LogL of Panasonic and LUMIX line-up. Cinelike D2 and V2, MonochromeS, and L.ClassicNeo have been added to Photo Style to expand your creativity. For Variable Frame Rate recording, C4K/4K 60fps, Anamorphic 50fps and FHD180fps are available with autofocus function prior to the recording starts.
Tough enough to withstand even heavy field use, the GH5M2 has a magnesium alloy full die-cast front/rear frame. Secure construction and a sealing for every joint, dial, and button make it not only splash and dust resistant** but also freeze resistant down to -10 degrees Celsius (14° F). Equipped with a double SD Memory Card slot compatible with high-speed, high capacity UHS-II for Relay Recording, Backup Recording, or Allocation Recording.
*Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm (35mm camera equivalent f=120mm) when H-ES12060 is used.
**Dust and splash resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.
Highlights:
THE ICONIC GH5, NOW WITH LIVE STREAMING: Attention hybrid content creators—the GH5M2 supports both wired and wireless unlimited live streaming for indoors and outdoors, together with a USB Power Delivery feature.
VIDEO FORMAT OPTIONS FOR PROFESSIONAL USE: The GH5M2 is capable of unlimited video recording in various settings including C4K/4K 60p 4:2:0 10-bit and simultaneous output over HDMI during 4K 60p internal recording.
PHOTO STYLE PRESETS MINIMIZE YOUR EDITING: Presets include V-LogL, Cinelike D2/ V2, MonochromeS and L.ClassicNeo.
POWERFUL IMAGE STABILIZATION: Advanced I.S. to 6.5-stop slower shutter speeds* for stable handheld shooting. Double SD Memory Card slot for relay recording.
WITHSTANDS HEAVY FIELD USE: The magnesium alloy full die-cast front / rear frame and is not only splash and dust resistant**, but also freezeproof down to -10 °C (14°F).
Features:
An ideal video creation tool
From streaming and delivery-ready shooting to uncompressed log recording suitable for advanced post-production. A hybrid mirrorless camera that meets the needs of all creators.
C4K/4K 60p/50p 10-bit internal/external recording
Simultaneous C4K/4K 60p/50p 4:2:0 10-bit internal recording and C4K/4K 60p/50p 4:2:2 10-bit HDMI live output external recording are supported.
Unlimited video recording, multiple modes
The LUMIX GH5M2 offers the multiple recording modes utilized for cinema, broadcasting, and other professional applications. In addition to C4K/4K 60p/50p 4:2:0 10-bit and C4K/4K 30p/25p/24p 4:2:2 10-bit ALL-Intra 400Mbps recording, unlimited recording is offered on all settings.
Pre-installed V-Log L
The LUMIX GH5M2 features a dynamic range of 12 stops with pre-installed V-Log L, while color graders can utilize the same LUTs they use with V-Log.
USB power supply / power charging
Convenient during long shoots in the studio and elsewhere, this feature allows you to supply power to the camera while charging the battery.* A USB 3.1 Type-C adaptor is included that is compatible with the USB PD (USB Power Delivery) standard.
*Battery must be installed in camera and retain some charge for feature to work.
Wireless live streaming (RTMP/RTMPS protocol)
Enjoy wireless livestreaming indoors and outdoors with the ease-of-operation afforded by the LUMIX Sync app (Android/iOS). Stream live events anytime, anywhere with the quality that only a digital single lens mirrorless camera can offer.
Enhanced 20.3MP MOS sensor with AR coating
An AR (Anti Reflection) coating effectively suppresses flare to capture the expression of light as it is, even in a harsh shooting environment surrounded by strong light such as backlight, achieving high-quality visual beauty for both videos and still images.
Autofocus featuring AI technology
Features high-speed, high-precision AF, and deep learning technology for recognition of human faces, eyes, heads, and bodies, as well as animals.
6.5-stop Dual I.S. 2 (Image Stabilizer)
5-axis Dual I.S. 2 (Image Stabilizer) combines control of the Body I.S. and Lens O.I.S. to offer 6.5 stops’ worth of correction.*
*Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=140mm (35mm camera equivalent f=280mm) when H-FS14140 is used.
Supports a wide range of production needs
With video performance suited to a wide range of creative needs, plus flexible, high-quality fundamental performance, the LUMIX GH5M2 offers professional-level video recording and still image shooting.
Specifications:
TYPE
Type: Digital Single Lens Mirrorless camera
Recording media: SD Memory Card / SDHC Memory Card* / SDXC Memory Card* *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards."
Lens mount: Micro Four Thirds mount
IMAGE SENSOR
Type: Live MOS sensor (17.3 x 13.0 mm)
Camera effective pixels / Total pixels: 20.33 megapixels / 21.77 megapixels
AR (Anti Reflection) coating: Yes
Aspect ratio / Color filter: 4:3 / Primary color filter
Dust reduction system: Image sensor shift type
LATITUDE: 12 stops (V-Log L)
STILL IMAGE
Recording file format
Still image: JPEG (DCF, Exif 2.31), RAW
6K PHOTO (*1) / 4K PHOTO (*1)
6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch))
4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))
Extracted still images: JPEG (DCF, Exif 2.31)"
Aspect ratio: 4:3 / 3:2 / 16:9 / 1:1
File size (Pixels)
4:3:5184x3888(L) / 3712x2784(M) / 2624x1968(S) / 4992x3744(6K PHOTO) / 3328x2496(4K PHOTO)
3:2: 5184x3456(L) / 3712x2480(M) / 2624x1752(S) / 5184x3456(6K PHOTO) / 3504x2336(4K PHOTO)
16:9: 5184x2920(L) / 3840x2160(M) / 1920x1080(S) / 3840x2160(4K PHOTO)
1:1: 3888x3888(L) / 2784x2784(M) / 1968x1968(S) / 2880x2880(4K PHOTO)
Image quality: RAW / RAW+Fine / RAW+Standard / Fine / Standard
Color space: sRGB, AdobeRGB
MOTION PICTURE
Recording file format:
MOV: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*)) *When attaching DMW-XLR1 (sold separately).
MP4: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: AAC (2ch))
System frequency: 59.94Hz / 50.00Hz / 24.00Hz
Image area of video: Full / Pixel by Pixel
MOV (*1)
High-res audio is selectable only when using the DMW-XLR1 (sold separately)."
59.94Hz
[C4K] 4096x2160"59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable."
[4K] 3840x2160"59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable."
[Anamorphic 6K] 4992x3744 (4:3)"29.97p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
23.98p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable."
[Anamorphic 4K] 3328x2496 (4:3)"59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable."
[FHD] 1920x1080"59.94p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
29.97p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
23.98p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable."
50.00Hz
[C4K] 4096x2160"50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
25.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable."
[4K] 3840x2160"50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
25.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable."
[Anamorphic 6K] 4992x3744 (4:3)25.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
[Anamorphic 4K] 3328x2496 (4:3)"50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
25.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable."
[FHD] 1920x1080"50.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
25.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable."
24.00Hz
[C4K] 4096x216024.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
[4K] 3840x216024.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
[Anamorphic 6K] 4992x3744 (4:3)24.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
[Anamorphic 4K] 3328x2496 (4:3)24.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
[FHD] 1920x108024.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
MP4 (*1)
59.94Hz
[4K] 3840x2160"59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)"
[FHD] 1920x1080"59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)"
50.00Hz
[4K] 3840x2160"50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)"
[FHD] 1920x1080"50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)"
24.00Hz
- -
VARIABLE FRAME RATE
MOV (*1)
High-res audio is selectable only when using the DMW-XLR1 (sold separately).
59.94Hz
[C4K] 4096x2160"29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)"
[4K] 3840x2160"29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)"
[Anamorphic 4K] 3328x2496 (4:3)"29.97p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)"
[FHD] 1920x1080"59.94p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)"
50.00Hz
[C4K] 4096x216025.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[4K] 3840x216025.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[Anamorphic 4K] 3328x2496 (4:3)25.00p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[FHD] 1920x1080"50.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
25.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)"
24.00Hz
[C4K] 4096x216024.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[4K] 3840x216024.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[Anamorphic 4K] 3328x2496 (4:3)24.00p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[FHD] 1920x108024.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
STREAMING
Protocol: RTMP / RTMPS
Streaming quality
NTSC (59.94Hz)
[FHD] 1920x1080"59.94p, 16Mbps* / 8Mbps (H.264) *Not selectable when RTMPS is set.
29.97p, 6Mbps / 3Mbps (H.264)
[HD] 1280x720"59.94p, 6Mbps (H.264)
29.97p, 4Mbps (H.264)
PAL (50.00Hz)
[FHD] 1920x1080"50.00p, 16Mbps* / 8Mbps (H.264) *Not selectable when RTMPS is set.
25.00p, 6Mbps / 3Mbps (H.264)"
[HD] 1280x720"50.00p, 6Mbps (H.264)
25.00p, 4Mbps (H.264)"
VIEWFINDER
Type: OLED Live View Finder
Pixels: Approx. 3.68 million dots
Field of view / Magnification: Approx. 100% / Approx. 1.52x / 0.76x (35mm camera equivalent) with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 4:3
Eye point / Diopter adjustment: Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +3.0 (dpt)
Eye sensor: Yes
Display speed: 120fps / 60fps
REAR MONITOR
Type: TFT LCD monitor with static touch control
Monitor size: Free-angle, 3.0-inch (7.5cm), 3:2 aspect
Pixels: Approx. 1.84 million dots
Field of view: Approx. 100%
FOCUS
Type: Contrast AF system
DFD technology: Yes
Focus mode: AFS (Single) / AFC (Continuous) / MF
AF mode: Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Vertical/Horizontal) / Zone (Square) / Zone (Oval) / 1-Area+ / 1-Area / Pinpoint / Custom 1, 2, 3
(Full area touch is available) (Scalable AF frame size and flexible AF position)
AF detective range: EV -4 - 18 (F2.0, ISO100 equivalent, AFS)
AF custom setting: AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
AF assist light: Yes
AF lock: Set the Fn button in custom menu to AF lock
Post Focus / Focus Stacking: Yes / Yes
Focus Ring Control: Nonlinear / Linear *When a compatible lens is attached.
Others: Focus Peaking, 1-Area AF Moving Speed, AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, AF-Point Scope, Shutter AF, Half Press Release, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, Loop Focus Frame, AFC Start Point (225-Area), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resume
EXPOSURE CONTROL
Light metering system: 1,728-zone multi-pattern sensing system
Light metering mode: Multiple / Center Weighted / Spot / Highlight Weighted
Metering range: EV0-18 (F2.0 lens, ISO100 equivalent)
Recording mode: Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure / Creative Video / Custom 1, 2, 3, 4 / Intelligent Auto
ISO sensitivity (Standard output sensitivity): Still image: Auto / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 (Changeable to 1/3 EV step)
Creative Video Mode: Auto / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 (Changeable to 1/3 EV step)
Exposure compensation: 1/3 EV step ±5EV (±3EV for motion picture)
AE lock: Set the Fn button in custom menu to AE lock
IMAGE STABILIZATION SYSTEM
Image sensor shift type (5-axis / 6.5-stop*)
*Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm (35mm camera equivalent f=120mm) when H-ES12060 (sold separately) is used.
Dual I.S. (6.5-stop* Dual I.S. 2 compatible)
*Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=140mm (35mm camera equivalent f=280mm) when H-FS14140 (sold separately) is used.
WHITE BALANCE
White balance: AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
White balance adjustment: Blue/Amber bias, Magenta/Green bias
Color temperature setting: 2500-10000K in 100K
SHUTTER
Type: Focal-plane shutter
Shutter speed: Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
Electronic shutter: Bulb (Max. 60 sec), 1/16,000 - 60
Self timer: 10sec, 3 images / 2sec / 10sec / Custom Time
Remote control: Remote control by DMW-RS2 (sold separately)
Silent mode / Shutter type: Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)
BRACKET
AE bracket: 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
Aperture bracket: 3, 5 or all positions
Focus bracket: 1 to 999 images, focus steps can be set in 10 levels
White balance bracket: 3 images in blue/amber axis or in magenta/green axis, color temperature setting
BURST SHOOTING
Burst speed
Mechanical shutter / Electronic front curtain shutter: AFS/MF: H: 12 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
AFC: H: 9 frames/sec (with Live View), M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
Electronic shutter: AFS/MF: H: 12 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
AFC: H: 7 frames/sec (with Live View), M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
Number of recordable images: RAW / RAW+JPEG: More than 108 images
JPEG: More than 999 images (When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)"" inserted into card slot 1.) *When recording is performed under the test conditions specified by Panasonic.
6K PHOTO (*1) / 4K PHOTO (*1)
Burst speed
6K PHOTO: 30 frames/sec
4K PHOTO: 60 frames/sec, 30 frames/sec"
Exif information: Yes (Each JPEG image cropped out of the 6K/4K burst file complies with EXIF.)
TIME LAPSE SHOT: Yes
STOP MOTION ANIMATION: Yes
FLASH
Flash type: TTL External Flash (sold separately)
Flash mode: Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
Flash synchronization: 1st Curtain Sync, 2nd Curtain Sync.
Flash output adjustment: 1/3EV step ±3EV
Synchronization speed: Less than 1/250 second
Wireless control: Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch
Flash sync socket: Yes
EXTRA TELE CONVERSION: 2.0x (EX S), 1.4x (EX M) *Only for still image recording.
PHOTO STYLE
Photo Style: Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log L / Hybrid Log Gamma / My Photo Style 1-10
Picture adjustment: Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / ISO / WB *Adjustable settings vary depending on the Photo Style mode.
FILTER: Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Color / Sunshine*
*For photos only.
MOTION PICTURE FUNCTION
Master pedestal level: 31 steps
Luminance level:
8-bit: 0-255 / 16-235 / 16-255
10-bit: 0‒1023 / 64‒940 / 64‒1023
Wave form monitor / Vectorscope: Selectable
LUT view assist: Monitor / HDMI
HLG view assist: Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF)
Anamorphic desqueeze display: 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
Synchro scan: Yes
Time code: Count Up: Rec Run/Free Run selectable, Time Code Mode: Drop frame/Non-drop frame selectable (When NTSC (59.94Hz) is selected.)
SS/Gain operation: Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
Color bars / 1kHz test tone: Yes (SMPTE / EBU / ARIB) / Yes
Knee control: Yes (in Like709 mode)
Other functions: Red REC Frame Indicator, Streaming Blue Frame Indicator
VERTICAL POSITION INFORMATION: Still image / Motion picture (ON/OFF)
LEVEL GAUGE: Yes
FUNCTION BUTTON
REC: Exposure Comp. / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Filter Effect / One Push AE / Touch AE / Exposure Mode / Synchro Scan / AF Mode / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / AF-Point Scope / Focus Area Set / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode / 1 Shot "6K/4K PHOTO" / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Live View Composite / Motion Pic. Rec File Format / Motion Pic. Rec Quality / Motion Pic. Rec Quality (My List) / Variable Frame Rate / Time Code Display / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Level Limiter / XLR Mic Adaptor Setting / Special Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Live Cropping / Q.MENU / Rec/Playback Switch / Video Record / LVF/Monitor Switch / Operation Lock / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Video-Priority Display / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control/ Zoom Control / Step Zoom / Zoom Speed / Destination Card Slot / Off (Disable Press and Hold) / Restore to Default
PLAY: Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / 6K/4K PHOTO Bulk Saving / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Night Mode / Card Slot Change / Wi-Fi / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / 6K/4K Photo Play / No Setting / Off (Disable Press and Hold) / Restore to Default
OSD LANGUAGE: Please refer to "OSD" Sheet
PRINT: PictBridge compatible
INTERFACE
USB: SuperSpeed USB 3.1 Gen1 Type-C
HDMI (*2)
HDMI: HDMI TypeA
Audio: Stereo
Monitor-through:
4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)
Down Convert: Auto / 4K / 1080p / 1080i / OFF"
Playback:
59.94Hz: Auto / C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080p / 1080i / 720p / 480p
50.00Hz: Auto / C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080p / 1080i / 720p / 576p
24.00Hz: Auto / C4K/24p / 4K/24p / 1080p
Remote input: φ2.5mm
Microphone: Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately).
External microphone / external audio device input: φ3.5mm for external microphone / external audio device
MIC (Plug-in Power) / MIC / LINE is selectable.
Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately)."
XLR microphone: Yes with DMW-XLR1 (sold separately)
Speaker: Monaural
Headphone output: φ3.5mm
SD card slot: Slot 1, Slot 2
WIRELESS
Wi-Fi:
2.4GHz (STA/AP) (IEEE802.11b/g/n)
5GHz (STA) (IEEE 802.11a/n/ac)
*5GHz Wi-Fi is not available in some countries.
Please refer to "Wi-Fi" Sheet
Bluetooth: Bluetooth® v4.2 (Bluetooth Low Energy (BLE))
DUST AND SPLASH RESISTANT*: Yes.
*Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.
POWER
Battery: Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
USB power supply, USB power charging, USB power delivery
Battery life (CIPA standard):
Approx. 400 images, 1200 images (Power Save LVF mode*) with H-ES12060 / DMW-BLK22
Approx. 410 images, 1200 images (Power Save LVF mode*) with H-FS12060 / DMW-BLK22
*Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec."
Continuous recordable time (Motion picture) (*1):
MP4 [4K/60p]: Approx. 120 min with H-ES12060 / H-FS12060
MP4 [FHD/60p]: Approx. 140 min with H-ES12060 / H-FS12060
Actual recordable time (Motion picture) (*1):
MP4 [4K/60p]: Approx. 60 min with H-ES12060 / H-FS12060
MP4 [FHD/60p]: Approx. 70 min with H-ES12060 / H-FS12060
Battery grip: DMW-BGGH5 (sold separately)
DIMENSIONS / WEIGHT
Dimensions (W x H x D): Approx. 138.5 x 98.1 x 87.4 mm / 5.45 x 3.86 x 3.44 inch (excluding protrusions)
Weight: Approx. 727g / 1.60 lb (SD Memory Card x 1, Battery, Body) Approx. 647g / 1.43 lb (Body only)
OPERATING ENVIRONMENT
Operating temperature (*3): -10oC to 40oC (14oF to 104oF)
Operating humidity: 10%RH to 80％RH
Software
Recording
LUMIX Sync
・ This software is used to control a Panasonic digital camera from a smartphone. Check the site below to download and install the software.
https://panasonic.jp/support/global/cs/dsc/ (For Android™ / iOS)
LUMIX Network Setting Software
・ This software is used to write in streaming destination setting information into an SD card from a computer. Check the site below to download and install the software.
https://panasonic.jp/support/global/cs/dsc/ (For Windows / Mac)
LUMIX Tether
・ This software is used to control a Panasonic digital camera from a computer. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
https://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)
Playback / Editing
The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet.
https://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
(*1) About motion picture recording
- Use a card with SD Speed Class with ""Class 4"" or higher when recording motion pictures in [MP4(under 28Mbps)].
- Use a card with SD Speed Class with ""UHS-I / UHS-II UHS Speed Class 3 (U3)"" when recording motion pictures with [MP4] in [4K] or [MOV].
(SD speed class is the speed standard regarding continuous writing.)
- Video Speed Class 60 or higher is required for ALL-Intra 400Mbps recording. Use of SD Memory Card with Video Speed Class 60 or higher is recommended for C4K/4K ALL-Intra video recording.
- MP4 motion pictures with [MP4] in [4K]:
- When using an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.
- When using an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately.
- MP4 motion pictures with [MP4] in [FHD]:
- You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes in length, but the motion picture file will be divided and recorded/played back separately.
- 4:2:2 10-bit recording is a recording mode for film production and the video needs to be processed on PC.
The original video cannot be played on standard TV, Blu-ray Disc™ recorder and Blu-ray Disc™ player.
It may cause problems such as freezing when played on these devices.
- When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.
(*2) For [C4K/60p] [C4K/50p] [4K/60p] [4K/50p] video output, use an HDMI2.0 cable that has the HDMI logo on it, and that is described as""4K compatible"".
(*3) The camera may stop recording when used in lower or higher than recommended operating temperature: -10 to 40 degrees.
Original: $1,197.99
-65%$1,197.99
$419.30Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Panasonic LUMIX GH5M2, 20.3MP Mirrorless Micro Four Thirds Camera with Live Streaming, 4K 4:2:2 10-Bit Video, Unlimited Video Recording, 5-Axis Image Stabilizer DC-GH5M2BODY
Panasonic LUMIX GH5M2
Free Your Creativity. Go Live.
Hybrid mirrorless camera featuring live streaming capability and C4K 60p/50p 10-bit video recording.
Product Features:
Supports Unlimited Live Streaming. Both wired and wireless live streaming, together with a USB Power Delivery feature, makes this an ideal professional camera for content creators and professional photographers
Unlimited Video Recording and Simultaneous Output Over HDMI: Enjoy unlimited recording in all modes, as well as simultaneous HDMI output during 4K 60p internal recording in various video format options, helpful for external monitoring and recording
Take greater control of your editing using V-LogL, Cinelike D2/ V2, MonochromeS and L.ClassicNeo; Various supportive functions for video shooting such as Luminance Spot Meter and Wave Form Monitor.
In-body Image Stabilizer for Stable Handheld Shooting: Dual Image Stabilization allows you to shoot blur-free at up to 6.5-stop slower shutter speeds
Tough enough for heavy field use, the ergonomic body with magnesium alloy full die-cast front / rear frame is splash-, dust-, and freeze-resistant down to -10°C/14°F
The legendary LUMIX GH5 experience, now with livestreaming! The LUMIX GH5M2 draws from the GH5, an iconic camera for pro photography and videography, adding features to challenge you to your highest levels of creativity.
The GH5M2 is capable of wireless live streaming using the LUMIX Sync smartphone app supported by USB PD outdoors or indoors. With a future firmware update, it will support wired IP streaming. Video can be delivered either as-is, or as log recording for advanced post-production.
The GH5M2 ensures successful shooting with a 20.3MP sensor with AR coating, the latest autofocus, and I.S. technologies with the latest Venus Engine. It is capable of unlimited video recording in various settings and can record C4K/4K 60p 4:2:0 10-bit without cropping, with simultaneous output over HDMI during internal recording. V-LogL is pre-installed to deliver a high dynamic range and broad colors, which makes you easy to match the color tone with the footage recorded in V-Log and V-LogL of Panasonic and LUMIX line-up. Cinelike D2 and V2, MonochromeS, and L.ClassicNeo have been added to Photo Style to expand your creativity. For Variable Frame Rate recording, C4K/4K 60fps, Anamorphic 50fps and FHD180fps are available with autofocus function prior to the recording starts.
Tough enough to withstand even heavy field use, the GH5M2 has a magnesium alloy full die-cast front/rear frame. Secure construction and a sealing for every joint, dial, and button make it not only splash and dust resistant** but also freeze resistant down to -10 degrees Celsius (14° F). Equipped with a double SD Memory Card slot compatible with high-speed, high capacity UHS-II for Relay Recording, Backup Recording, or Allocation Recording.
*Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm (35mm camera equivalent f=120mm) when H-ES12060 is used.
**Dust and splash resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.
Highlights:
THE ICONIC GH5, NOW WITH LIVE STREAMING: Attention hybrid content creators—the GH5M2 supports both wired and wireless unlimited live streaming for indoors and outdoors, together with a USB Power Delivery feature.
VIDEO FORMAT OPTIONS FOR PROFESSIONAL USE: The GH5M2 is capable of unlimited video recording in various settings including C4K/4K 60p 4:2:0 10-bit and simultaneous output over HDMI during 4K 60p internal recording.
PHOTO STYLE PRESETS MINIMIZE YOUR EDITING: Presets include V-LogL, Cinelike D2/ V2, MonochromeS and L.ClassicNeo.
POWERFUL IMAGE STABILIZATION: Advanced I.S. to 6.5-stop slower shutter speeds* for stable handheld shooting. Double SD Memory Card slot for relay recording.
WITHSTANDS HEAVY FIELD USE: The magnesium alloy full die-cast front / rear frame and is not only splash and dust resistant**, but also freezeproof down to -10 °C (14°F).
Features:
An ideal video creation tool
From streaming and delivery-ready shooting to uncompressed log recording suitable for advanced post-production. A hybrid mirrorless camera that meets the needs of all creators.
C4K/4K 60p/50p 10-bit internal/external recording
Simultaneous C4K/4K 60p/50p 4:2:0 10-bit internal recording and C4K/4K 60p/50p 4:2:2 10-bit HDMI live output external recording are supported.
Unlimited video recording, multiple modes
The LUMIX GH5M2 offers the multiple recording modes utilized for cinema, broadcasting, and other professional applications. In addition to C4K/4K 60p/50p 4:2:0 10-bit and C4K/4K 30p/25p/24p 4:2:2 10-bit ALL-Intra 400Mbps recording, unlimited recording is offered on all settings.
Pre-installed V-Log L
The LUMIX GH5M2 features a dynamic range of 12 stops with pre-installed V-Log L, while color graders can utilize the same LUTs they use with V-Log.
USB power supply / power charging
Convenient during long shoots in the studio and elsewhere, this feature allows you to supply power to the camera while charging the battery.* A USB 3.1 Type-C adaptor is included that is compatible with the USB PD (USB Power Delivery) standard.
*Battery must be installed in camera and retain some charge for feature to work.
Wireless live streaming (RTMP/RTMPS protocol)
Enjoy wireless livestreaming indoors and outdoors with the ease-of-operation afforded by the LUMIX Sync app (Android/iOS). Stream live events anytime, anywhere with the quality that only a digital single lens mirrorless camera can offer.
Enhanced 20.3MP MOS sensor with AR coating
An AR (Anti Reflection) coating effectively suppresses flare to capture the expression of light as it is, even in a harsh shooting environment surrounded by strong light such as backlight, achieving high-quality visual beauty for both videos and still images.
Autofocus featuring AI technology
Features high-speed, high-precision AF, and deep learning technology for recognition of human faces, eyes, heads, and bodies, as well as animals.
6.5-stop Dual I.S. 2 (Image Stabilizer)
5-axis Dual I.S. 2 (Image Stabilizer) combines control of the Body I.S. and Lens O.I.S. to offer 6.5 stops’ worth of correction.*
*Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=140mm (35mm camera equivalent f=280mm) when H-FS14140 is used.
Supports a wide range of production needs
With video performance suited to a wide range of creative needs, plus flexible, high-quality fundamental performance, the LUMIX GH5M2 offers professional-level video recording and still image shooting.
Specifications:
TYPE
Type: Digital Single Lens Mirrorless camera
Recording media: SD Memory Card / SDHC Memory Card* / SDXC Memory Card* *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards."
Lens mount: Micro Four Thirds mount
IMAGE SENSOR
Type: Live MOS sensor (17.3 x 13.0 mm)
Camera effective pixels / Total pixels: 20.33 megapixels / 21.77 megapixels
AR (Anti Reflection) coating: Yes
Aspect ratio / Color filter: 4:3 / Primary color filter
Dust reduction system: Image sensor shift type
LATITUDE: 12 stops (V-Log L)
STILL IMAGE
Recording file format
Still image: JPEG (DCF, Exif 2.31), RAW
6K PHOTO (*1) / 4K PHOTO (*1)
6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch))
4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))
Extracted still images: JPEG (DCF, Exif 2.31)"
Aspect ratio: 4:3 / 3:2 / 16:9 / 1:1
File size (Pixels)
4:3:5184x3888(L) / 3712x2784(M) / 2624x1968(S) / 4992x3744(6K PHOTO) / 3328x2496(4K PHOTO)
3:2: 5184x3456(L) / 3712x2480(M) / 2624x1752(S) / 5184x3456(6K PHOTO) / 3504x2336(4K PHOTO)
16:9: 5184x2920(L) / 3840x2160(M) / 1920x1080(S) / 3840x2160(4K PHOTO)
1:1: 3888x3888(L) / 2784x2784(M) / 1968x1968(S) / 2880x2880(4K PHOTO)
Image quality: RAW / RAW+Fine / RAW+Standard / Fine / Standard
Color space: sRGB, AdobeRGB
MOTION PICTURE
Recording file format:
MOV: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*)) *When attaching DMW-XLR1 (sold separately).
MP4: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: AAC (2ch))
System frequency: 59.94Hz / 50.00Hz / 24.00Hz
Image area of video: Full / Pixel by Pixel
MOV (*1)
High-res audio is selectable only when using the DMW-XLR1 (sold separately)."
59.94Hz
[C4K] 4096x2160"59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable."
[4K] 3840x2160"59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable."
[Anamorphic 6K] 4992x3744 (4:3)"29.97p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
23.98p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable."
[Anamorphic 4K] 3328x2496 (4:3)"59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable."
[FHD] 1920x1080"59.94p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
29.97p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
23.98p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable."
50.00Hz
[C4K] 4096x2160"50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
25.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable."
[4K] 3840x2160"50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
25.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable."
[Anamorphic 6K] 4992x3744 (4:3)25.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
[Anamorphic 4K] 3328x2496 (4:3)"50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
25.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable."
[FHD] 1920x1080"50.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
25.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable."
24.00Hz
[C4K] 4096x216024.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
[4K] 3840x216024.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
[Anamorphic 6K] 4992x3744 (4:3)24.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
[Anamorphic 4K] 3328x2496 (4:3)24.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
[FHD] 1920x108024.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
MP4 (*1)
59.94Hz
[4K] 3840x2160"59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)"
[FHD] 1920x1080"59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)"
50.00Hz
[4K] 3840x2160"50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)"
[FHD] 1920x1080"50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)"
24.00Hz
- -
VARIABLE FRAME RATE
MOV (*1)
High-res audio is selectable only when using the DMW-XLR1 (sold separately).
59.94Hz
[C4K] 4096x2160"29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)"
[4K] 3840x2160"29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)"
[Anamorphic 4K] 3328x2496 (4:3)"29.97p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)"
[FHD] 1920x1080"59.94p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)"
50.00Hz
[C4K] 4096x216025.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[4K] 3840x216025.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[Anamorphic 4K] 3328x2496 (4:3)25.00p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[FHD] 1920x1080"50.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
25.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)"
24.00Hz
[C4K] 4096x216024.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[4K] 3840x216024.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[Anamorphic 4K] 3328x2496 (4:3)24.00p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[FHD] 1920x108024.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
STREAMING
Protocol: RTMP / RTMPS
Streaming quality
NTSC (59.94Hz)
[FHD] 1920x1080"59.94p, 16Mbps* / 8Mbps (H.264) *Not selectable when RTMPS is set.
29.97p, 6Mbps / 3Mbps (H.264)
[HD] 1280x720"59.94p, 6Mbps (H.264)
29.97p, 4Mbps (H.264)
PAL (50.00Hz)
[FHD] 1920x1080"50.00p, 16Mbps* / 8Mbps (H.264) *Not selectable when RTMPS is set.
25.00p, 6Mbps / 3Mbps (H.264)"
[HD] 1280x720"50.00p, 6Mbps (H.264)
25.00p, 4Mbps (H.264)"
VIEWFINDER
Type: OLED Live View Finder
Pixels: Approx. 3.68 million dots
Field of view / Magnification: Approx. 100% / Approx. 1.52x / 0.76x (35mm camera equivalent) with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 4:3
Eye point / Diopter adjustment: Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +3.0 (dpt)
Eye sensor: Yes
Display speed: 120fps / 60fps
REAR MONITOR
Type: TFT LCD monitor with static touch control
Monitor size: Free-angle, 3.0-inch (7.5cm), 3:2 aspect
Pixels: Approx. 1.84 million dots
Field of view: Approx. 100%
FOCUS
Type: Contrast AF system
DFD technology: Yes
Focus mode: AFS (Single) / AFC (Continuous) / MF
AF mode: Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Vertical/Horizontal) / Zone (Square) / Zone (Oval) / 1-Area+ / 1-Area / Pinpoint / Custom 1, 2, 3
(Full area touch is available) (Scalable AF frame size and flexible AF position)
AF detective range: EV -4 - 18 (F2.0, ISO100 equivalent, AFS)
AF custom setting: AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
AF assist light: Yes
AF lock: Set the Fn button in custom menu to AF lock
Post Focus / Focus Stacking: Yes / Yes
Focus Ring Control: Nonlinear / Linear *When a compatible lens is attached.
Others: Focus Peaking, 1-Area AF Moving Speed, AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, AF-Point Scope, Shutter AF, Half Press Release, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, Loop Focus Frame, AFC Start Point (225-Area), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resume
EXPOSURE CONTROL
Light metering system: 1,728-zone multi-pattern sensing system
Light metering mode: Multiple / Center Weighted / Spot / Highlight Weighted
Metering range: EV0-18 (F2.0 lens, ISO100 equivalent)
Recording mode: Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure / Creative Video / Custom 1, 2, 3, 4 / Intelligent Auto
ISO sensitivity (Standard output sensitivity): Still image: Auto / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 (Changeable to 1/3 EV step)
Creative Video Mode: Auto / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 (Changeable to 1/3 EV step)
Exposure compensation: 1/3 EV step ±5EV (±3EV for motion picture)
AE lock: Set the Fn button in custom menu to AE lock
IMAGE STABILIZATION SYSTEM
Image sensor shift type (5-axis / 6.5-stop*)
*Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm (35mm camera equivalent f=120mm) when H-ES12060 (sold separately) is used.
Dual I.S. (6.5-stop* Dual I.S. 2 compatible)
*Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=140mm (35mm camera equivalent f=280mm) when H-FS14140 (sold separately) is used.
WHITE BALANCE
White balance: AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
White balance adjustment: Blue/Amber bias, Magenta/Green bias
Color temperature setting: 2500-10000K in 100K
SHUTTER
Type: Focal-plane shutter
Shutter speed: Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
Electronic shutter: Bulb (Max. 60 sec), 1/16,000 - 60
Self timer: 10sec, 3 images / 2sec / 10sec / Custom Time
Remote control: Remote control by DMW-RS2 (sold separately)
Silent mode / Shutter type: Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)
BRACKET
AE bracket: 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
Aperture bracket: 3, 5 or all positions
Focus bracket: 1 to 999 images, focus steps can be set in 10 levels
White balance bracket: 3 images in blue/amber axis or in magenta/green axis, color temperature setting
BURST SHOOTING
Burst speed
Mechanical shutter / Electronic front curtain shutter: AFS/MF: H: 12 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
AFC: H: 9 frames/sec (with Live View), M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
Electronic shutter: AFS/MF: H: 12 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
AFC: H: 7 frames/sec (with Live View), M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
Number of recordable images: RAW / RAW+JPEG: More than 108 images
JPEG: More than 999 images (When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)"" inserted into card slot 1.) *When recording is performed under the test conditions specified by Panasonic.
6K PHOTO (*1) / 4K PHOTO (*1)
Burst speed
6K PHOTO: 30 frames/sec
4K PHOTO: 60 frames/sec, 30 frames/sec"
Exif information: Yes (Each JPEG image cropped out of the 6K/4K burst file complies with EXIF.)
TIME LAPSE SHOT: Yes
STOP MOTION ANIMATION: Yes
FLASH
Flash type: TTL External Flash (sold separately)
Flash mode: Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
Flash synchronization: 1st Curtain Sync, 2nd Curtain Sync.
Flash output adjustment: 1/3EV step ±3EV
Synchronization speed: Less than 1/250 second
Wireless control: Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch
Flash sync socket: Yes
EXTRA TELE CONVERSION: 2.0x (EX S), 1.4x (EX M) *Only for still image recording.
PHOTO STYLE
Photo Style: Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log L / Hybrid Log Gamma / My Photo Style 1-10
Picture adjustment: Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / ISO / WB *Adjustable settings vary depending on the Photo Style mode.
FILTER: Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Color / Sunshine*
*For photos only.
MOTION PICTURE FUNCTION
Master pedestal level: 31 steps
Luminance level:
8-bit: 0-255 / 16-235 / 16-255
10-bit: 0‒1023 / 64‒940 / 64‒1023
Wave form monitor / Vectorscope: Selectable
LUT view assist: Monitor / HDMI
HLG view assist: Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF)
Anamorphic desqueeze display: 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
Synchro scan: Yes
Time code: Count Up: Rec Run/Free Run selectable, Time Code Mode: Drop frame/Non-drop frame selectable (When NTSC (59.94Hz) is selected.)
SS/Gain operation: Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
Color bars / 1kHz test tone: Yes (SMPTE / EBU / ARIB) / Yes
Knee control: Yes (in Like709 mode)
Other functions: Red REC Frame Indicator, Streaming Blue Frame Indicator
VERTICAL POSITION INFORMATION: Still image / Motion picture (ON/OFF)
LEVEL GAUGE: Yes
FUNCTION BUTTON
REC: Exposure Comp. / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Filter Effect / One Push AE / Touch AE / Exposure Mode / Synchro Scan / AF Mode / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / AF-Point Scope / Focus Area Set / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode / 1 Shot "6K/4K PHOTO" / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Live View Composite / Motion Pic. Rec File Format / Motion Pic. Rec Quality / Motion Pic. Rec Quality (My List) / Variable Frame Rate / Time Code Display / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Level Limiter / XLR Mic Adaptor Setting / Special Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Live Cropping / Q.MENU / Rec/Playback Switch / Video Record / LVF/Monitor Switch / Operation Lock / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Video-Priority Display / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control/ Zoom Control / Step Zoom / Zoom Speed / Destination Card Slot / Off (Disable Press and Hold) / Restore to Default
PLAY: Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / 6K/4K PHOTO Bulk Saving / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Night Mode / Card Slot Change / Wi-Fi / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / 6K/4K Photo Play / No Setting / Off (Disable Press and Hold) / Restore to Default
OSD LANGUAGE: Please refer to "OSD" Sheet
PRINT: PictBridge compatible
INTERFACE
USB: SuperSpeed USB 3.1 Gen1 Type-C
HDMI (*2)
HDMI: HDMI TypeA
Audio: Stereo
Monitor-through:
4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)
Down Convert: Auto / 4K / 1080p / 1080i / OFF"
Playback:
59.94Hz: Auto / C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080p / 1080i / 720p / 480p
50.00Hz: Auto / C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080p / 1080i / 720p / 576p
24.00Hz: Auto / C4K/24p / 4K/24p / 1080p
Remote input: φ2.5mm
Microphone: Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately).
External microphone / external audio device input: φ3.5mm for external microphone / external audio device
MIC (Plug-in Power) / MIC / LINE is selectable.
Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately)."
XLR microphone: Yes with DMW-XLR1 (sold separately)
Speaker: Monaural
Headphone output: φ3.5mm
SD card slot: Slot 1, Slot 2
WIRELESS
Wi-Fi:
2.4GHz (STA/AP) (IEEE802.11b/g/n)
5GHz (STA) (IEEE 802.11a/n/ac)
*5GHz Wi-Fi is not available in some countries.
Please refer to "Wi-Fi" Sheet
Bluetooth: Bluetooth® v4.2 (Bluetooth Low Energy (BLE))
DUST AND SPLASH RESISTANT*: Yes.
*Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.
POWER
Battery: Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
USB power supply, USB power charging, USB power delivery
Battery life (CIPA standard):
Approx. 400 images, 1200 images (Power Save LVF mode*) with H-ES12060 / DMW-BLK22
Approx. 410 images, 1200 images (Power Save LVF mode*) with H-FS12060 / DMW-BLK22
*Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec."
Continuous recordable time (Motion picture) (*1):
MP4 [4K/60p]: Approx. 120 min with H-ES12060 / H-FS12060
MP4 [FHD/60p]: Approx. 140 min with H-ES12060 / H-FS12060
Actual recordable time (Motion picture) (*1):
MP4 [4K/60p]: Approx. 60 min with H-ES12060 / H-FS12060
MP4 [FHD/60p]: Approx. 70 min with H-ES12060 / H-FS12060
Battery grip: DMW-BGGH5 (sold separately)
DIMENSIONS / WEIGHT
Dimensions (W x H x D): Approx. 138.5 x 98.1 x 87.4 mm / 5.45 x 3.86 x 3.44 inch (excluding protrusions)
Weight: Approx. 727g / 1.60 lb (SD Memory Card x 1, Battery, Body) Approx. 647g / 1.43 lb (Body only)
OPERATING ENVIRONMENT
Operating temperature (*3): -10oC to 40oC (14oF to 104oF)
Operating humidity: 10%RH to 80％RH
Software
Recording
LUMIX Sync
・ This software is used to control a Panasonic digital camera from a smartphone. Check the site below to download and install the software.
https://panasonic.jp/support/global/cs/dsc/ (For Android™ / iOS)
LUMIX Network Setting Software
・ This software is used to write in streaming destination setting information into an SD card from a computer. Check the site below to download and install the software.
https://panasonic.jp/support/global/cs/dsc/ (For Windows / Mac)
LUMIX Tether
・ This software is used to control a Panasonic digital camera from a computer. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
https://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)
Playback / Editing
The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet.
https://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
(*1) About motion picture recording
- Use a card with SD Speed Class with ""Class 4"" or higher when recording motion pictures in [MP4(under 28Mbps)].
- Use a card with SD Speed Class with ""UHS-I / UHS-II UHS Speed Class 3 (U3)"" when recording motion pictures with [MP4] in [4K] or [MOV].
(SD speed class is the speed standard regarding continuous writing.)
- Video Speed Class 60 or higher is required for ALL-Intra 400Mbps recording. Use of SD Memory Card with Video Speed Class 60 or higher is recommended for C4K/4K ALL-Intra video recording.
- MP4 motion pictures with [MP4] in [4K]:
- When using an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.
- When using an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately.
- MP4 motion pictures with [MP4] in [FHD]:
- You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes in length, but the motion picture file will be divided and recorded/played back separately.
- 4:2:2 10-bit recording is a recording mode for film production and the video needs to be processed on PC.
The original video cannot be played on standard TV, Blu-ray Disc™ recorder and Blu-ray Disc™ player.
It may cause problems such as freezing when played on these devices.
- When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.
(*2) For [C4K/60p] [C4K/50p] [4K/60p] [4K/50p] video output, use an HDMI2.0 cable that has the HDMI logo on it, and that is described as""4K compatible"".
(*3) The camera may stop recording when used in lower or higher than recommended operating temperature: -10 to 40 degrees.
