PreSonus Eris Pro Sub 10 10" Active Front-firing Studio Subwoofer

PreSonus 10-inch Active Front-Firing Studio Subwoofer

Intended for serious personal studios and professional music-production environments, the Eris Pro Sub 10 helps you take charge of the low-frequency foundation of your mix. An ideal companion to Eris Pro- and Eris Studio-series reference monitors, the Eris Pro Sub 10 complements full-range monitors without overshadowing them and extends the reach of your full-range system's low end with a natural sound.

Powerful and musical, the PreSonus Eris Pro Sub 10 active, front-firing studio subwoofer is designed to deliver fast and accurate transient response, extending low frequencies down to 20 Hz, allowing you to hear the full-spectrum range of your mix. Driven by 170W (RMS) Class AB amplification, the Eris Pro Sub 10's 10-inch, glass-composite, low-frequency driver delivers tight, responsive sub-bass, thanks to its lightweight and rigid cone. This design provides lower distortion than other materials for sub-bass reproduction that's as coherent and clear as your full-range monitors.

Extensive user controls include input gain, continuously variable lowpass filter for creating a seamless crossover transition, and a switchable highpass filter that removes content below 80 Hz from the full-range signal sent to the monitors. A continuously variable lowpass filter (50 Hz to 130 Hz) allows you to create a seamless crossover transition between the full-range studio monitors and subwoofer for the most accurate listening environment possible.

Product Highlights:

Seamless System Integration

The Eris Pro Sub 10 integrates seamlessly with your full-range monitors. A variable lowpass filter sets the upper (crossover) frequency reproduced by the subwoofer. A switchable highpass filter on the full-range outputs helps avoid frequency cancellation and reinforcement in the subwoofer's upper range, while a polarity-invert function ensures your system is in phase. A momentary footswitch (included) makes it easy to compare your mix with or without sub-bass frequencies.

Product Features:

10-inch, front-firing, glass-composite, low-frequency transducer

Front-firing, bass-reflex acoustic port

Continuously variable lowpass filter (50 Hz to 130 Hz) sets the upper frequency reproduced by the subwoofer

Switchable highpass filter removes frequency content below 80 Hz from the full-range subwoofer outputs to the main monitors

Momentary footswitch (included) bypasses the subwoofer, highpass filter, and Sub Out

Input gain control (-30 dB to +6 dB, continuously variable), polarity invert switch, and ground-lift switch

170 watt (RMS), Class AB amplification for up to 113 dB SPL, with a frequency response of 20 to 200 Hz

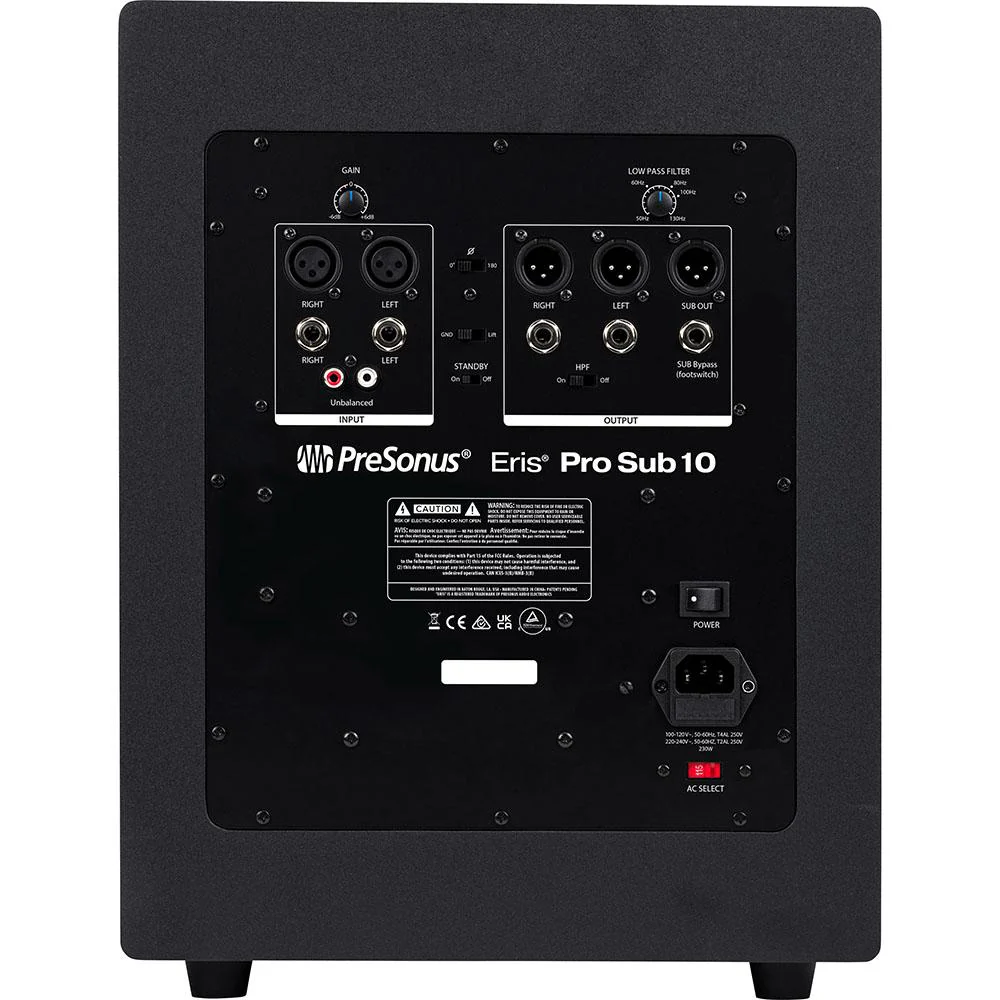

Left and right, balanced XLR and 1/4-inch TRS and unbalanced RCA main inputs

Left and right balanced XLR and 1/4-inch TRS outputs and XLR subwoofer output for connecting a second Eris Pro Sub 10

Product Specifications:

Accessories

Footswitch: 1-Button Footswitch Included (Sub On/Off)

Electronics

Voltage Requirements: 100-240 VAC, 50-60 Hz

General

Color: Black

Product Name: Eris Pro Sub 10, Black

Series: Eris

Hardware

Audio Controls:

Input Gain Range: -30 to +6 dB

Low Pass Filter Control: 50 Hz to 130 Hz

Audio Switches:

Polarity Switch: 0 degrees or 180 degrees

Ground Lift Switch: On/Off

High Pass Filter Switch: On/Off

Bypass Footswitch: On/Off

Cabinet Material: Vinyl-Laminated, Medium-Density Fiberboard

LF Transducers: 10" Glass-Composite, Front-Firing

Monitor Inputs: 2- Balanced XLR, 2- Balanced 1/4" TRS, 2- Unbalanced RCA

Monitor Type: Active Subwoofer

Power Amplifier Type: Class AB

Measurements

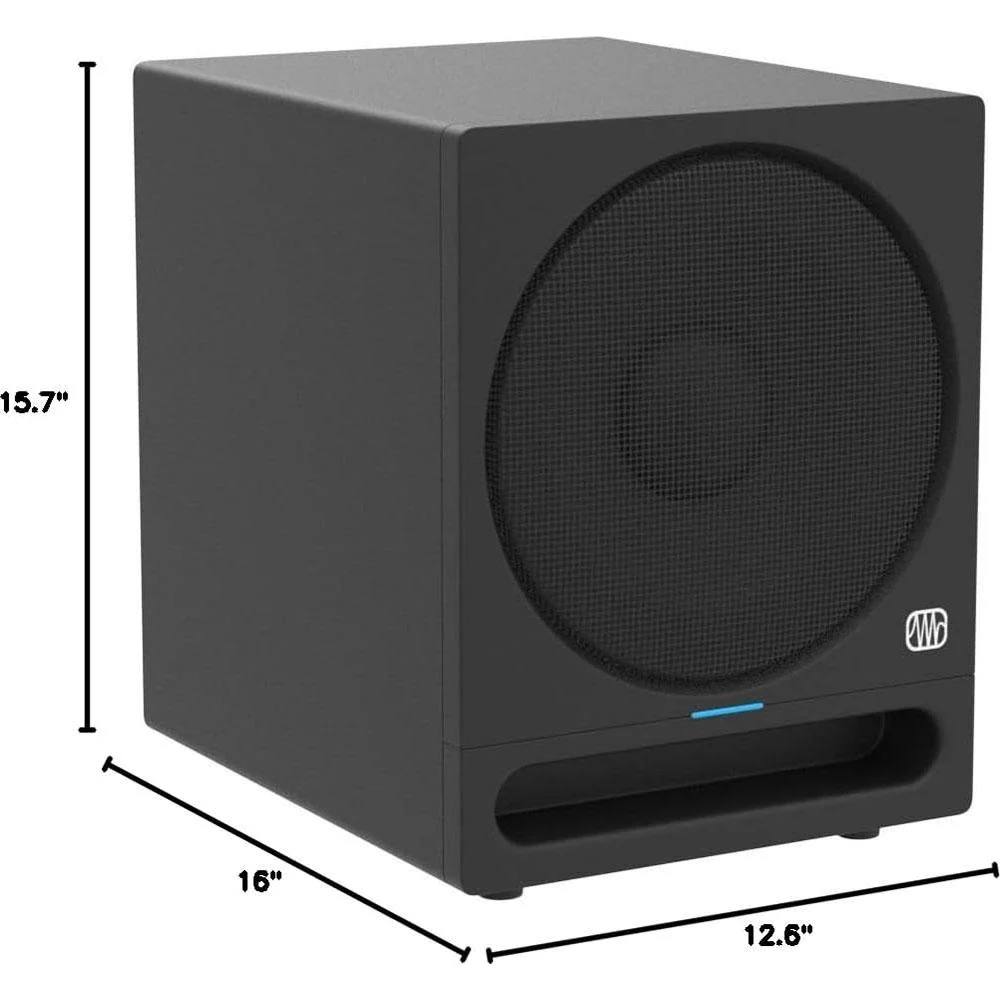

Product Depth: 16" (40.6 cm)

Product Height: 15.75" (40 cm)

Product Height/Length: 15.75" (40 cm)

Product Width: 12.6" (32 cm)

Miscellaneous

Low Pass Filter Frequency: 50 - 130 Hz (Variable)

Power Cable: IEC

Protections:

RF Interference

Output-Current Limiting

Over-Temperature

Turn-On/Off Transient

Subsonic Filter

Performance

Peak SPL: 113 dB (@ 1 Meter)
