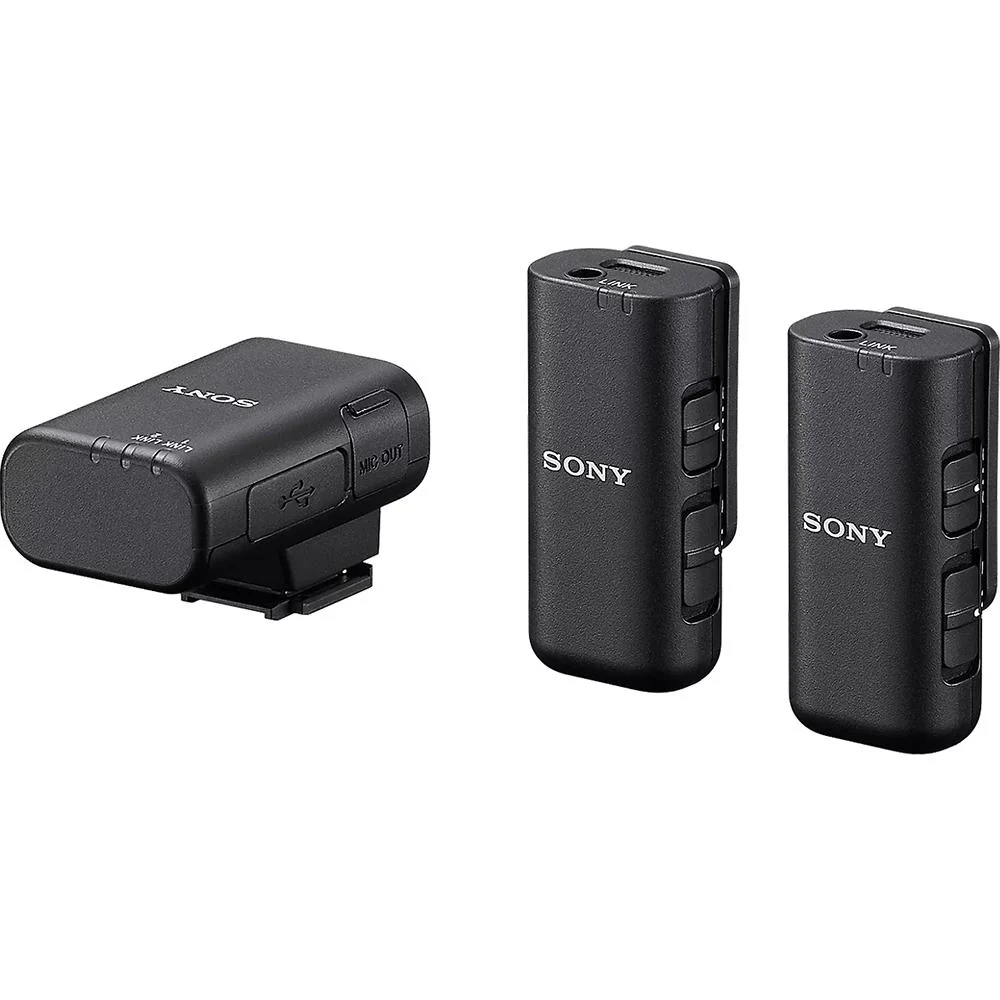

Sony ECM-W3 Dual-Channel Wireless Microphone, Black
Sony ECM-W3 Dual-Channel Wireless Microphone - Dual-channel wireless microphone for high-quality digital recording
The ECM-W3 comprises two microphone-transmitters featuring high signal-to-noise (S/N) ratio microphone units, and a dual-channel receiver. The transmitters and receiver process audio digitally and transmit it wirelessly, allowing the capture and recording of two speakers' voices with superb clarity and low noise.
Product Highlights:
Dual-channel wireless microphone for high-quality digital recording
Communication is possible at up to 492 ft (150 m)
High signal-to-noise ratio (S/N) microphone units
Noise-suppressing filter functions
Multi Interface (MI) Shoe compatible
A charging case is included in the package
Safety and attenuator functions
Microphone audio output by 3.5mm jack
USB digital audio (48K Hz /24 bit) output
Compact, lightweight, and dust-and moisture resistant
Product Features:
Digital sound recording with superb quality
High-quality digital sound recording
High signal-to-noise ratio (S/N) microphone units are integrated into the two combined microphone-transmitters, enabling clear voice recording with low noise.
High-quality dual-channel digital transmission
Connecting the dual-channel receiver to a camera from Sony that supports the Multi Interface (MI) Shoe, such as one of the α series digital interchangeable-lens cameras or vlog cameras, allows the digital audio signal output from the receiver to be recorded directly by the camera, enabling high-quality sound recording with minimal noise contamination.
Noise-suppressing filter functions
A noise cut filter using digital signal processing to effectively remove noise, and a low cut filter that reduces noise in the low-frequency range, are provided on the microphone side. Less noise removal is needed post-production, making workflow more efficient.
A wide variety of sound recording methods
Multi Interface (MI) Shoe compatible
The receiver can be easily attached to a camera from Sony that supports the Multi Interface (MI) Shoe, such as one of the α series digital interchangeable-lens cameras or vlog cameras, without cables, allowing immediate sound acquisition and avoiding interference with the vari-angle LCD monitor even when it is opened horizontally for shooting. This allows a greater degree of freedom and mobility when shooting.
The convenience of wireless
The ECM-W3 comprises two microphone-transmitters and a dual-channel receiver, allowing wireless sound capture of two speakers' voices. Communication is possible at up to 492ft (150 m) in clear line-of-sight locations, with Bluetooth 5.3 (Bluetooth Low Energy) and LC3plus codecs providing low power consumption, low latency, and high sound quality. Power saving has also enabled a reduction in battery size.
Safety and attenuator functions
A safety function is provided that allows simultaneous recording of two audio signals, one at normal volume and the other 20 dB lower, reducing the risk of clipping during loud recording. An attenuator function is also provided, allowing the recording level to be set to one of three values according to the audio volume.
Microphone audio input/output
A 3.5 mm mini jack (monaural) is provided as an external microphone input terminal on the microphone side, and a 3.5 mm mini jack (stereo) on the receiver side serves as an audio output terminal. In addition to sound acquisition using a stereo-compatible lavalier microphone, output to devices not equipped with a Multi Interface (MI) Shoe is also possible.
USB digital audio output
Digital audio (48 kHz / 24 bit) can be output from the receiver via USB cable to a smartphone or PC, or to a USB audio input compatible device for recording.
Compactness, light weight and high reliability
Compact and lightweight design
Both the microphone-transmitters and receiver have excellent mobility and portability, and are compact and lightweight enough not to get in the way when carrying or shooting. Designed to be dust- and moisture-resistant, they can be used outdoors without worry.
Status notification functions
The LINK lamp indicates the status of the communication channel between the microphone and receiver to prevent recording errors. The POWER lamps on both the microphone and receiver indicate battery level to prevent recording errors due to dead batteries.
Battery assist function
Power is supplied directly from the α series digital interchangeable-lens cameras or vlog cameras to the receiver.
Compact charging case
A small charging case is included in the package, allowing you to continue shooting without worrying about running out of battery power. the microphone transmitter unit can operate continuously for approximately 6 hours on a full charge.
Wind screen (included)
The included wind screen can be used to reduce the wind noise that may occur when the microphone is impacted by strong wind or breath. This allows stable and clear recording of the speaker's voice, even when shooting outdoors.
Product Specifications:
Microphone Specification
Operating Temperature: 0 ℃ to +40 ℃ (+32 °F to +104 °F)
Microphone Channel Audio Output: 2ch
Shoe Type: Multi Interface Shoe
Power Supply from Main Unit: Multi Interface Shoe
Battery Type: Built-in lithium-ion battery
Number of Battery Required: 1
Monaural / Stereo: Monaural
Directivity: Omni-directional
Frequency Response: 20 Hz to 20 000 Hz
Front Sensitivity: -20 dBFS (0.1 Pa, 1 kHz) Acquired while "10dB" is selected by the ATT switch
Intrinsic Noise: 16 dB SPL or less (0 dB = 2×10⁻⁵ Pa) Acquired while "10dB" is selected by the ATT switch. Acquired while "DIGITAL" is selected by the slide switch.
Maximum Input Sound Pressure Level: 120 dB SPL Acquired while "10dB" is selected by the ATT switch. Equivalent sound pressure level value converted from the input level value that is acquired when 1% waveform distortion is produced by 1 kHz output signals from the microphone. (0 dB = 2×10⁻⁵ Pa)
Microphone Out Jack: Yes (3.5 mm mini jack (stereo))
External Microphone Input Jack: Yes (3.5 mm mini jack (monaural))
USB Type-C Terminal: Yes
Dimensions: 6 x 4.54 x 3.83 inches
Weight: 5.4 ounces
Compatible Cameras: ILME-FX3, ILME-FX30, ILME-FX30B, ILCE-6700, ILCE-6700L, ILCE-6700M, ILCE-7CM2, ILCE-7CM2L, ILCE-7CR, ILCE-7RM5, ZV-E1, ZV-E1L, ILCE-7M4, ILCE-7M4K, ILCE-7RM4A, ZV-E10, ZV-E10L, ILCE-1, ILCE-7C, ILCE-7CL, ILCE-7SM3, ILCE-9M2, ILCE-7RM4
Supplied Accessory
Wind Screen (2)
Connector Protect
Holder/Stand (1)
Pouch (1)
Charging case (1)
Warranty
Battery
Lithium Battery: Yes
Original: $278.00
-65%$278.00
$97.30Product Information
